Purpose
A list of different desktop PCMCIA/Cardbus slots you might find for sale all over the internet. Here as a reference so you can link some random card to the correct slot and vice-versa.
Sources I have still not yet covered
- https://tldp.org/HOWTO/PCMCIA-HOWTO-2.html
- For Elan P-series PCI card readers based on the Cirrus PD6729 PCI-to-PCMCIA bridge chip, the
i82365driver requires a ```irq_mode=1`” parameter. - With SCM Microsystems SBP series PCI card readers (which are also being distributed with Lucent WaveLAN IEEE cards), and for the Synchrotech PCM-CR-PC2IF and PCM-CR-PC2IR, it is necessary to specify ```irq_mode=0
'' for thei82365` module, to force use of PCI interrupts. - The PLX Technologies PCI9052 (also sold as the Linksys WDT11) is not a general purpose PCMCIA card reader at all: it is a PCI interface card for use with certain wireless adapters, that makes them look like ordinary PCI devices. These devices are not supported.
- For Elan P-series PCI card readers based on the Cirrus PD6729 PCI-to-PCMCIA bridge chip, the
- http://www.sycard.com/linkhost.html
- https://web.archive.org/web/20091118220243/http://www.basterfield.com/pc110/extras.htm
Amtron
Amtron PCIE-CB110
PCI-Express x1 to Cardbus
https://www.amtron.com/reader/pciecb110.htm
Does NOT support 16-bit cards, does NOT support hot-swapping.
Windows 7 x64 drivers

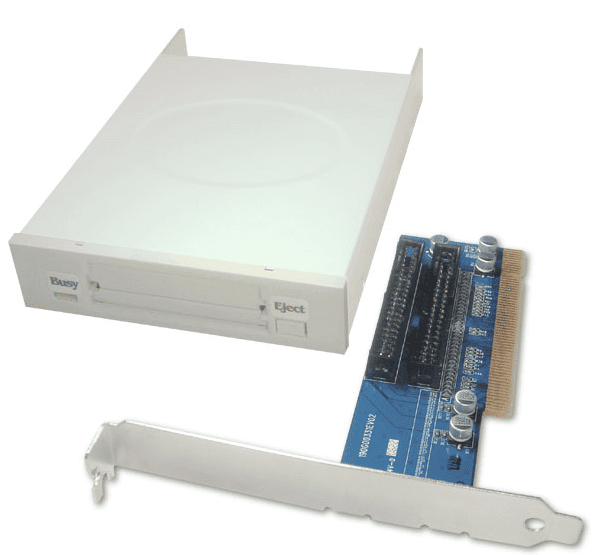

Amtron PCD-TP-110CS / DR08
Single-slot Cardbus PCI
Supports 16- and 32-bit cards
Controller: TI PCI1510

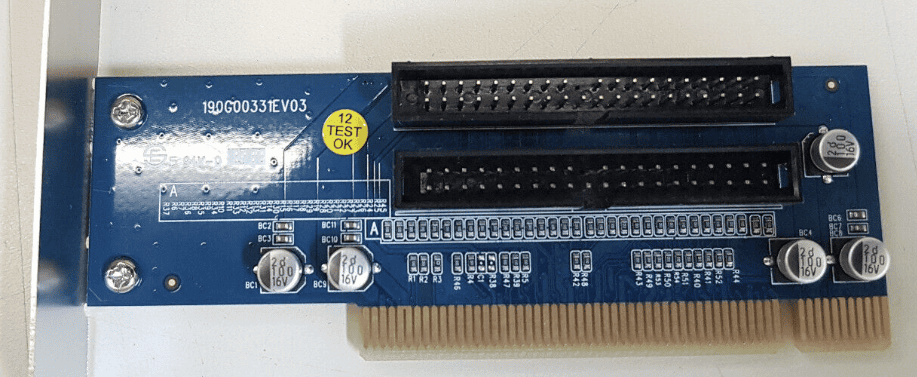

PCI card is silkscreened with 190G00331EV03

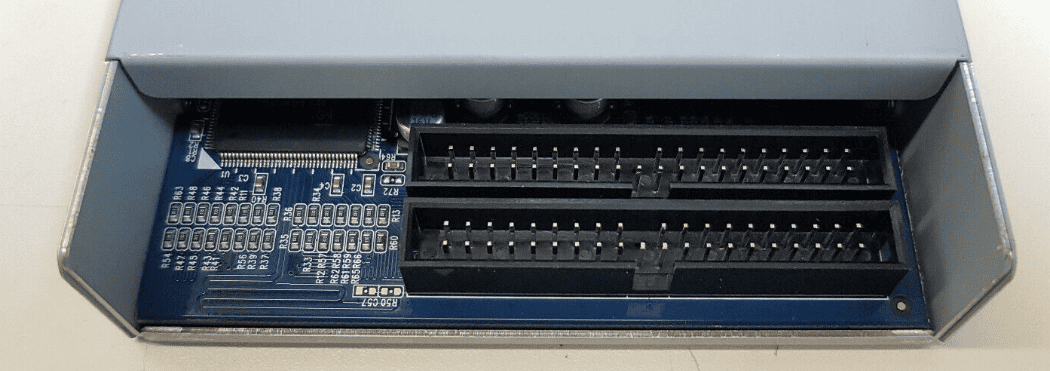

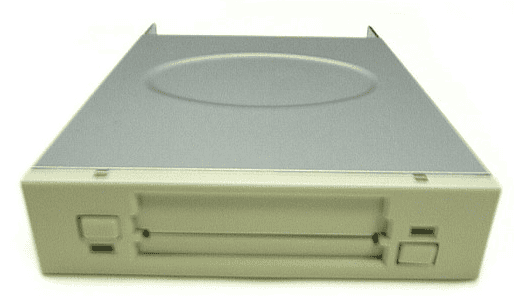

DR08 is MN of the bay/slot module. Inside, it also has the silkscreen 190G00331EV03.
Note: the PCI card is completely passive, all electronics are in the bay module itself!
ActionTec

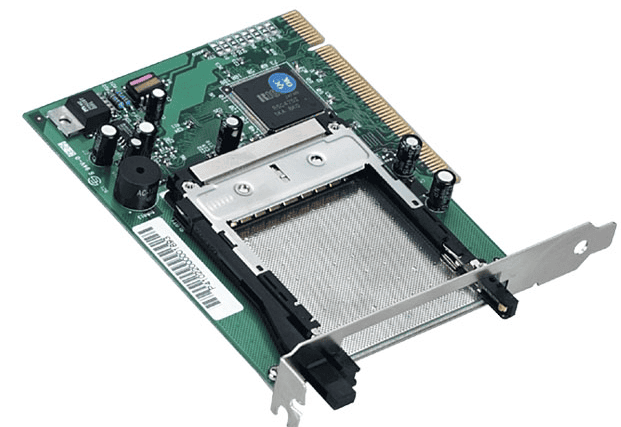

ActionTec PC750 / AD75000
Made with Ricoh controller or TI PCISET PCI1225 (or series like PCI1225PDV).
DOES NOT SUPPORT CARDBUS, despite being PCI
Ricoh Chipset
OEM of Antec DataChute PCI.

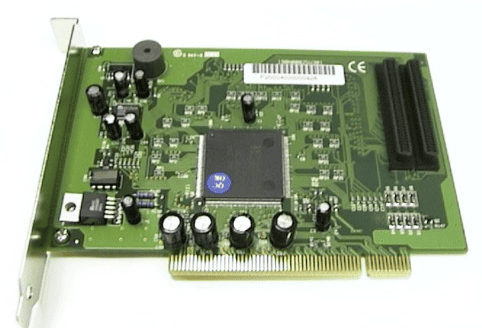

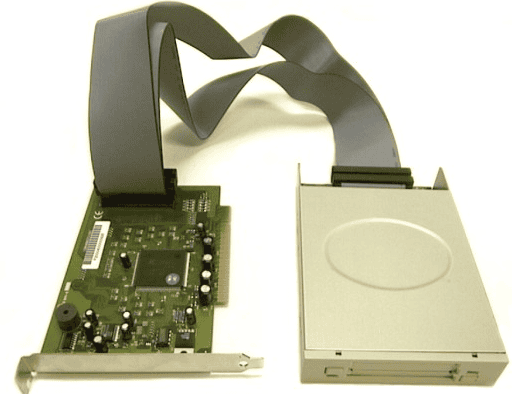

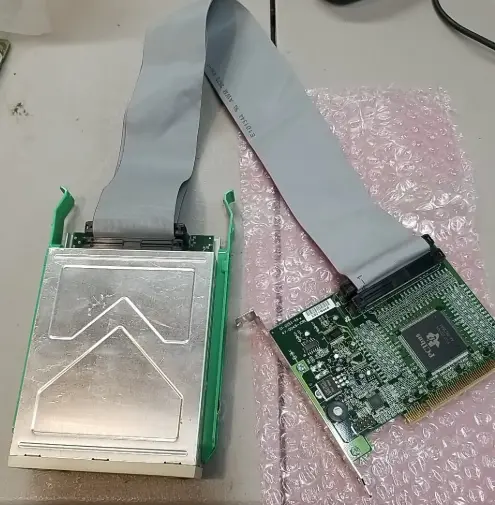

TI PCISET PCI1225
Controller on PCI card is TI PCISET PCI1225 (or series like PCI1225PDV).

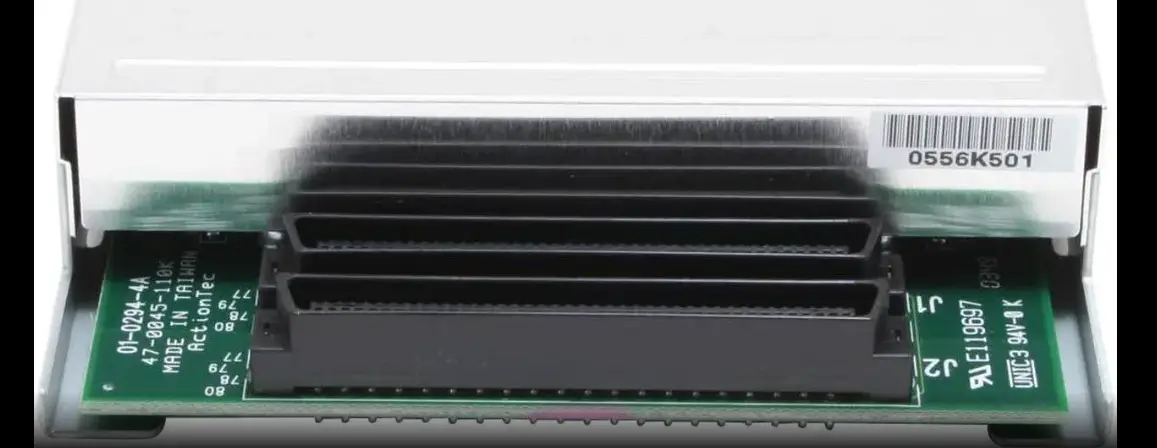

Silkscreen on card indicates model “01-0293-4A”? Silkscreen on slot indicates model 01-0294-4A.
On some models, manufacturer is silkscreened as Actiontec.
Shows up a lot labeled as “SCSI DAT” card.
Some auctions indicate a Dell P/N 6128V.
May have also been sold as a version of SCM Swapbox.
(Source: eBay)
(source: Newegg)
Antec
Antec DataChute PCI
See ActionTec PC750 / AD75000.
Card Master

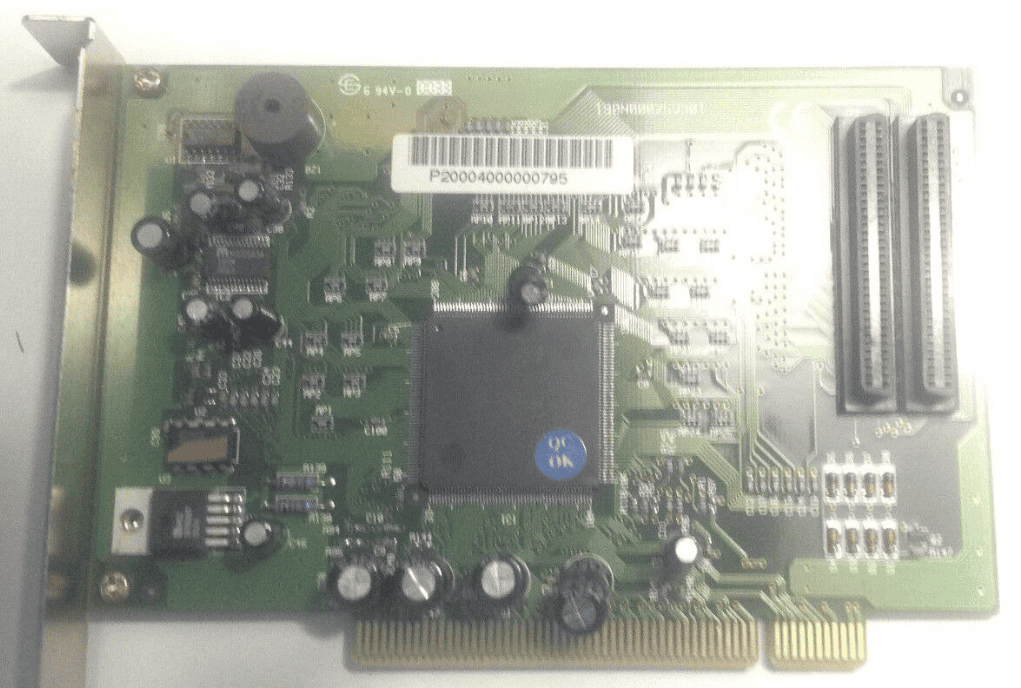

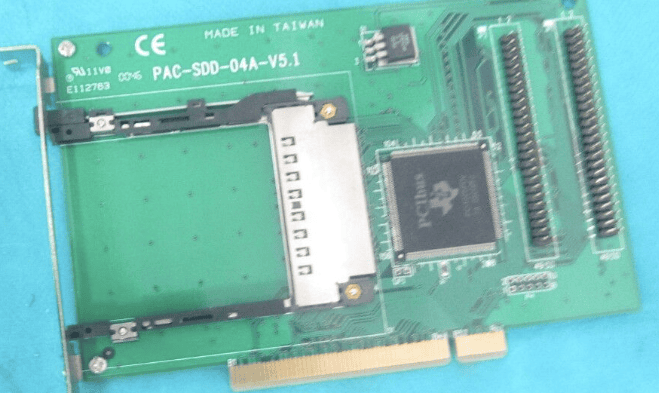

PAC-SDD-04A-V5.1 (aka Card Master-PCI-IF)
http://www.cardmaster.com.tw/prod-pci.htm
Dual cardbus (in in card, 1 in bay) PCI
TI 1420 controller
For PCD-995 or Card Master-PCI-IFD

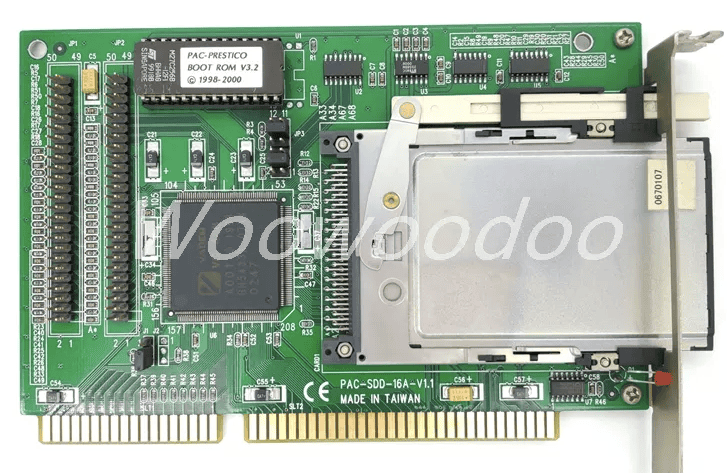

PAC-SDD-16A-V1.1 (Card Master –IF/468,IFD/468,FD1/468, FD2/468)
Microsoft Word - IF468.DOC (cardmaster.com.tw)
Isa dual slot (1 on card, 1 in bay)
Vadem VG-468
Bootable with ROM installed

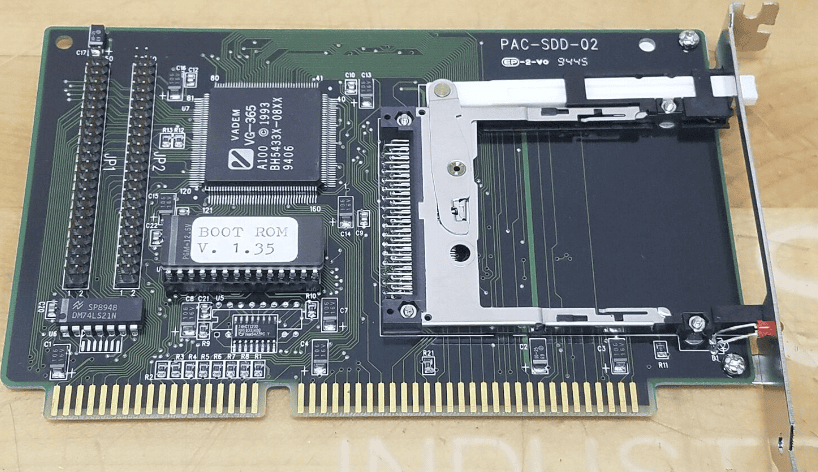

PAC-SDD-Q2 (aka RDM-210A)
Single slot onboard with single external PCMCIA to isa with boot rom
Controller: Vadem VG-365

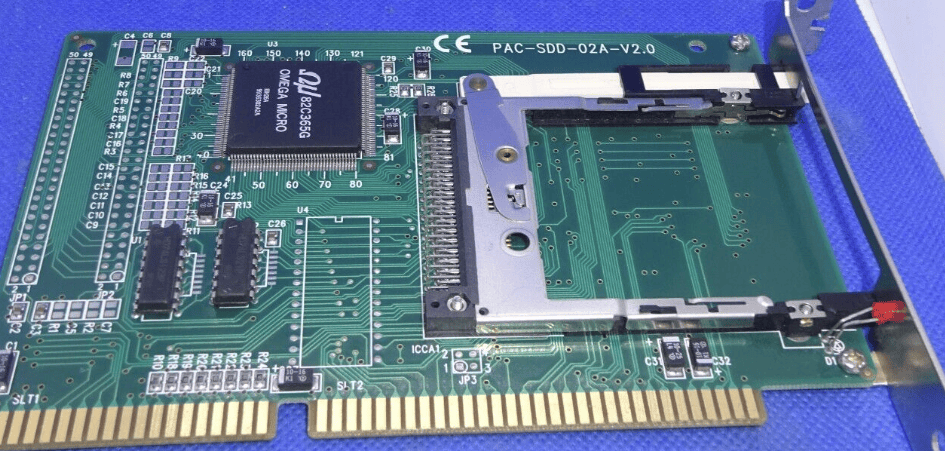

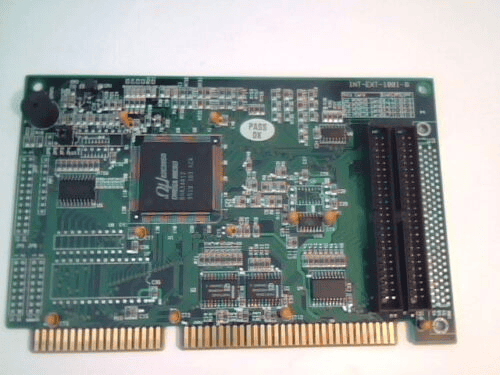

PAC-SDD-02A (aka PacMaster) or IPCA-SDD-02A
Single slot PCMCIA ISA
Controller: Omega Micro 82C365G (probably VG-365 clone)
https://www.ebay.com/itm/255907952959
Card Master FD2/469
Vadem VG-469LF
http://www.cardmaster.com.tw/prod-isa.htm
http://www.cardmaster.com.tw/pro_pdf/C.M.FD2-469.pdf
Eiger

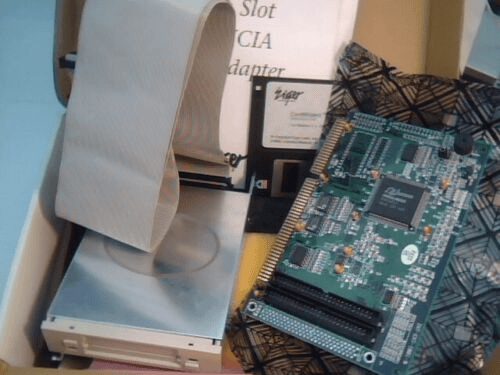

Eiger ESA-2000
https://www.ebay.com/itm/134041042148
Probably same as REX-5051fx
Elcard

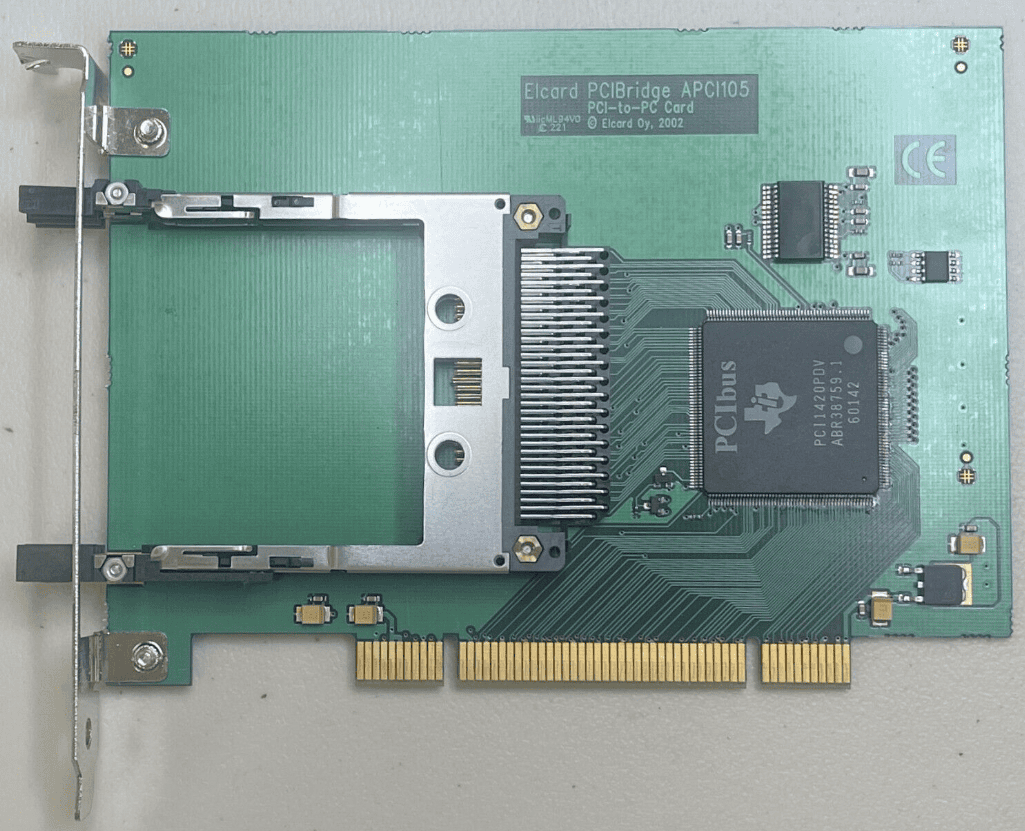

Elcard PCIBridge APCI105
PCI-to-PC Card
PCI1420ODV Controller
Dual Cardbus
Elan

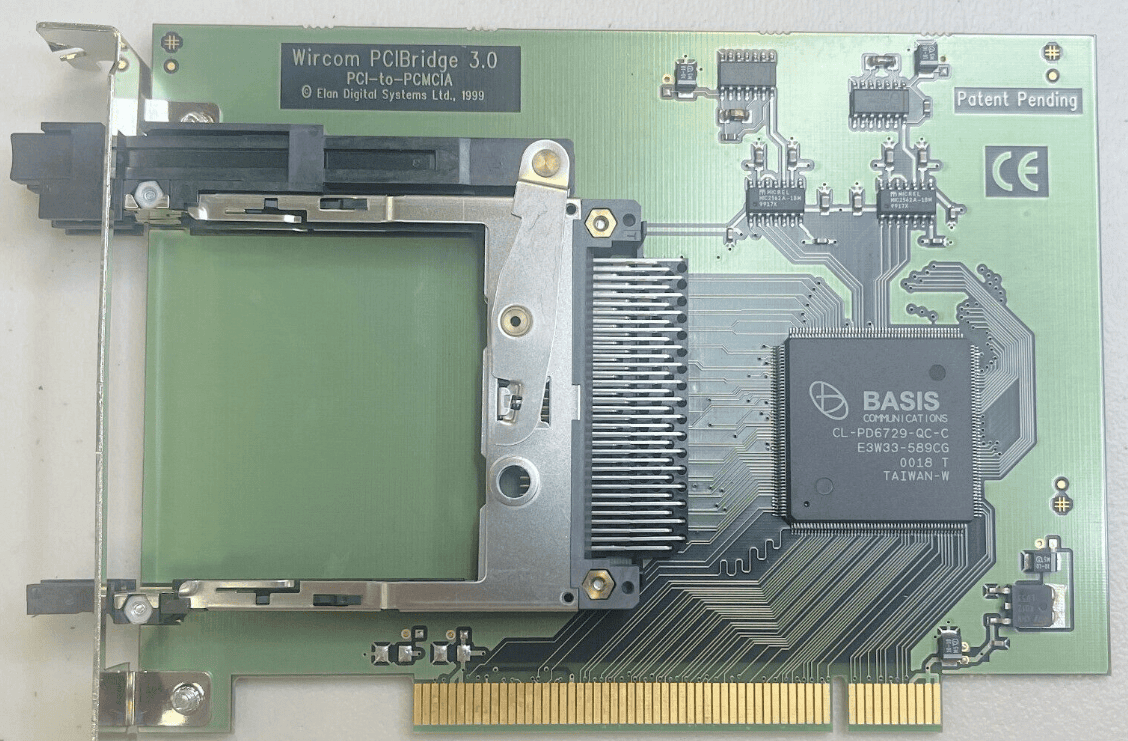

Elan Systems Wircom PSIBridge 3.0
PCI-to-PCMCIA
Dual Slot
Controller: Basis CL-PD6729-QC-C
Similar in design to Elcard PCIBridge APCI105
Elan Twin Front Slot Universal PCI to PCMCIA model P423
NOT CARDBUS

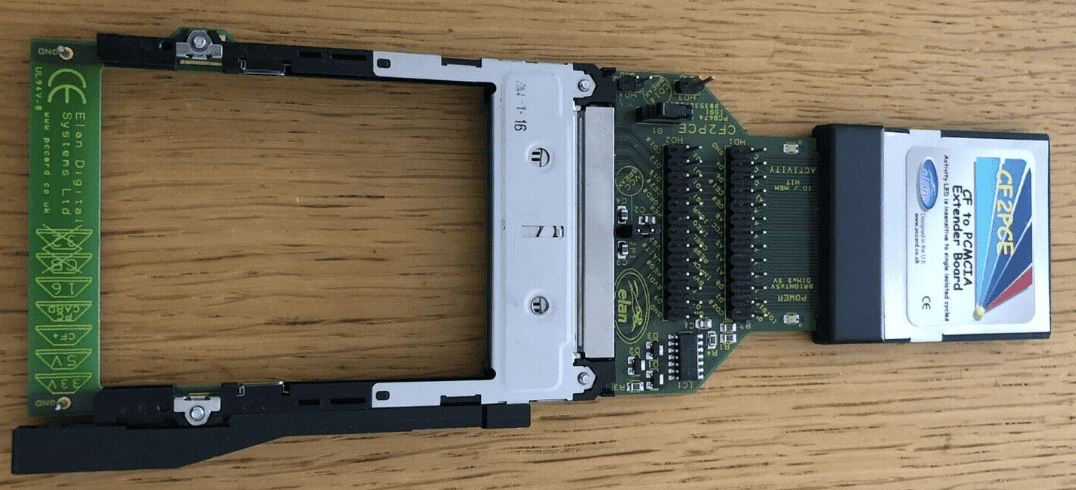

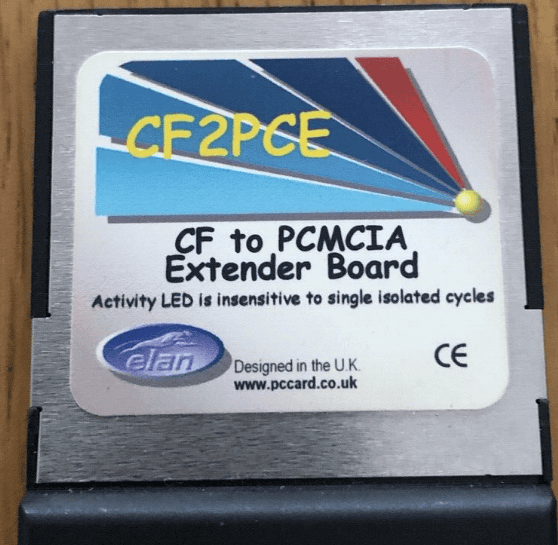

Elan Cf2pce - compact flash card to pcmcia extender board (AKA TS-F-CF2PCE)
https://www.ebay.com/itm/254591308156
Elan Digital Systems, Ltd (www.pccard.co.uk)
Litronic/Greystone

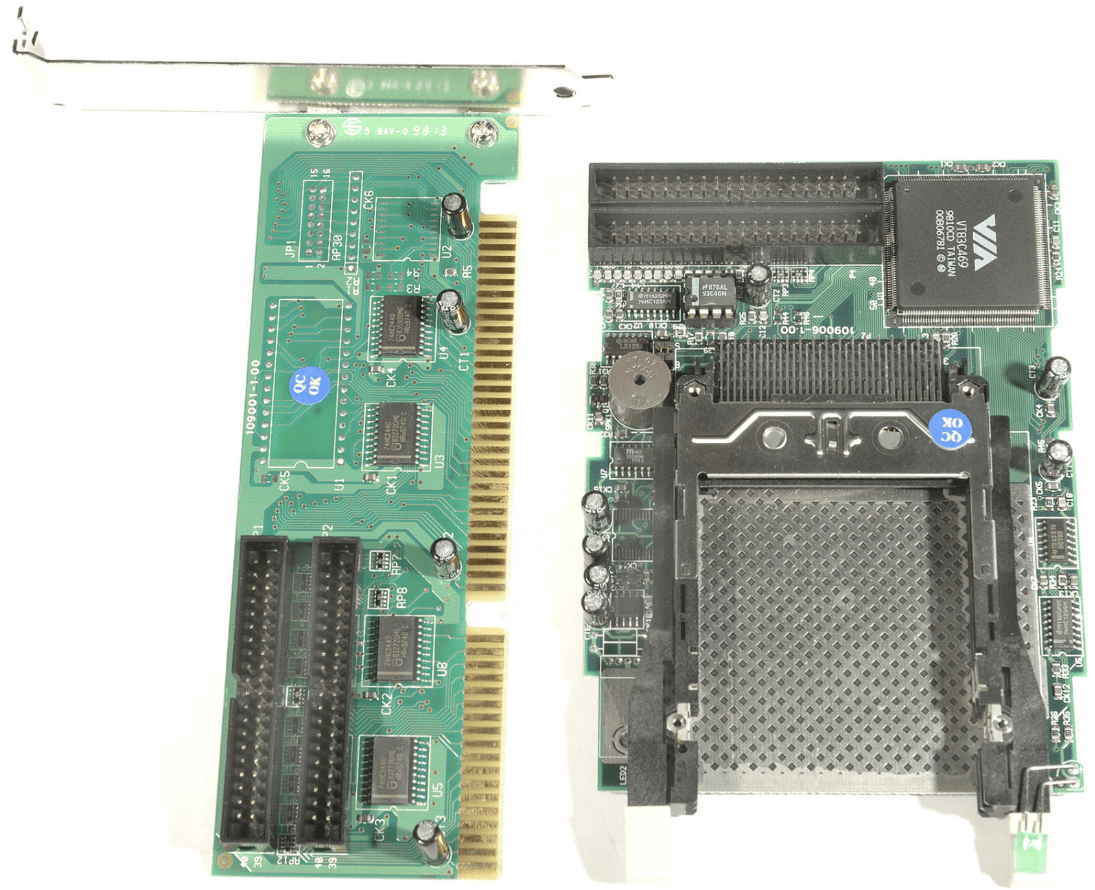

Litronic/Greystone Dual Slot ISA (aka Antec DataChute, Linksys ProConnect PCMRDWR)
Controller IC is on bay module: VT83C469
Controller Cards is ISA, only has buffer ICs (74HC244D, 8-bit buffer/line driver with 3-state outputs), two 40-pin cables

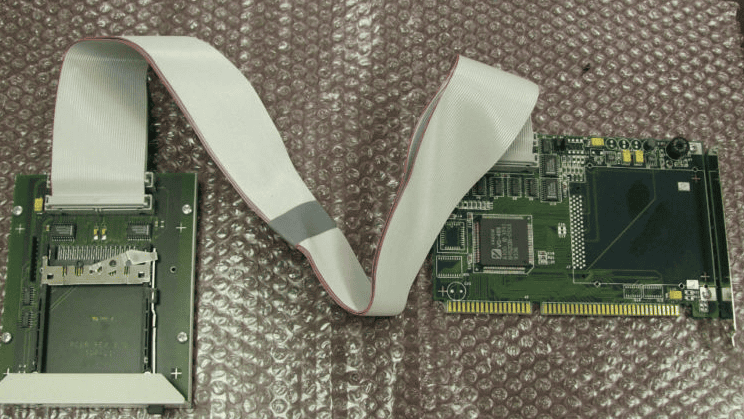

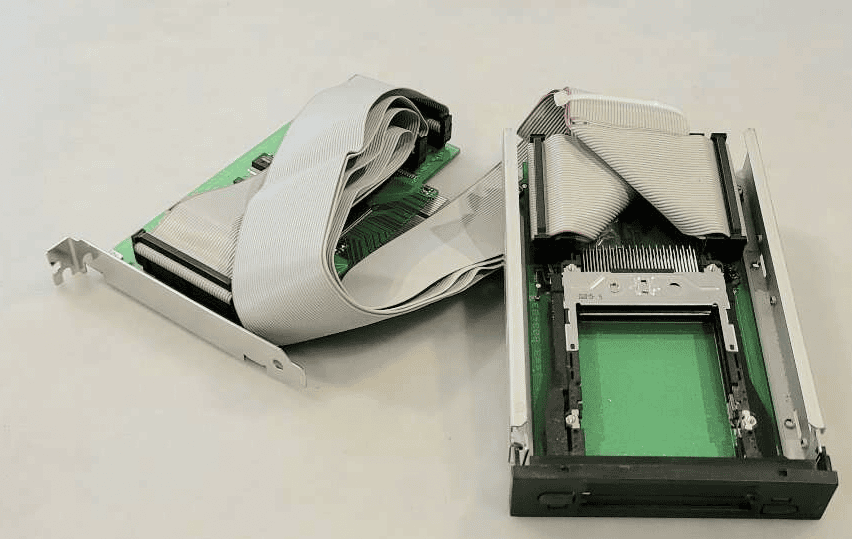

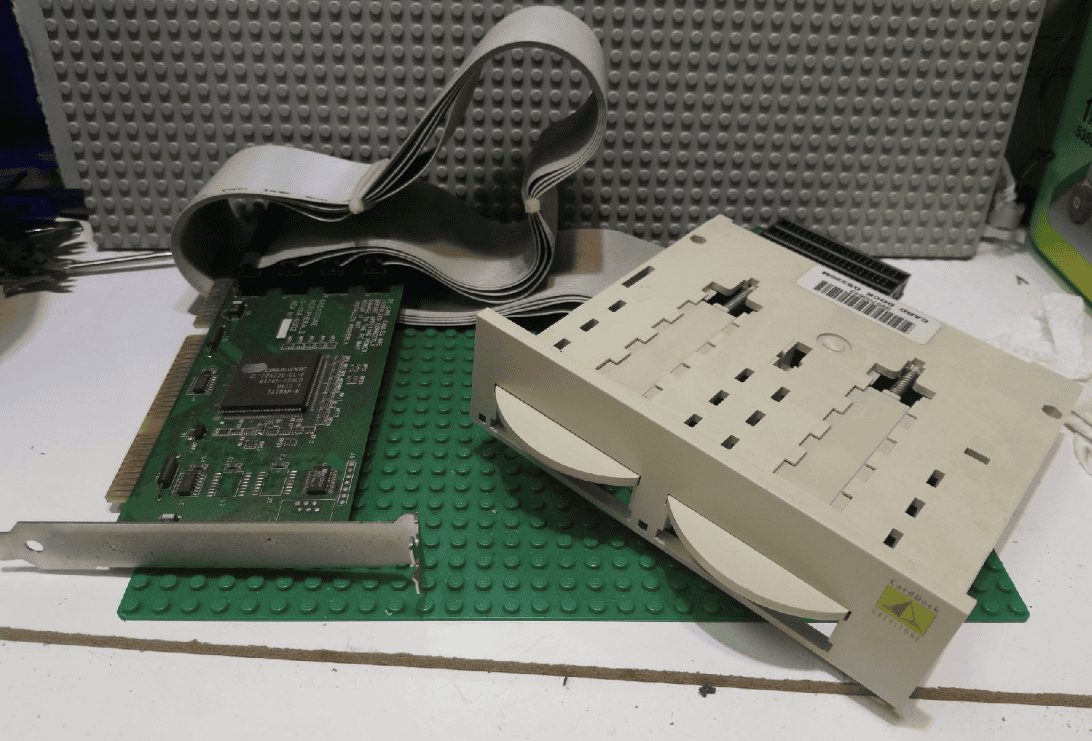

Greystone CardDock
Controller: Cirrus Logic CL-PD6720-QC-E
Controller card PN: S-ISA-0002
Uses 4 40-pin cables
Logitec (NOT Logitech)
Logitec LPM-CA10RP
PCI to single Cardbus
RICOH R5C475II
https://www.logitec.co.jp/products/card_rw/lpmca10rp.html
IBM

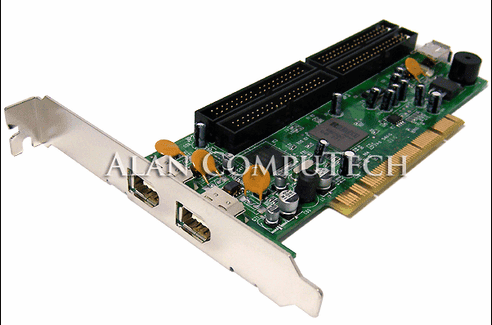

HI001 / 49P4378
R5C522 controller, Cardbus and FireWire controller. Its the same controller used Thinkpad A30p, X30, and some versions of X31 (source).
Tow external FW/1394 6-pin connectors, and one 4-pin internal connector.
Probably an OEM controller used in IBM (pre-Lenovo) desktops cira 2003-2004. Best candidate is NetVista A30 / A30p (8310), from 2003. From IBM Refbook:
Some: Combination FireWire/PCMCIA PCI adapter / FireWire: 1394A, 400Mbps, dual 6-pin ports on rear, 4-pin port on front of system, no cables included / two PCMCIA Type I or two Type II slots in front lower left of system
It’s unknown if this card/kit supports 32-bit cardbus. While R5C522 does support cardbus, but that IBM refbook simply says “PCMCIA”.
(source)
PSI / PSISM

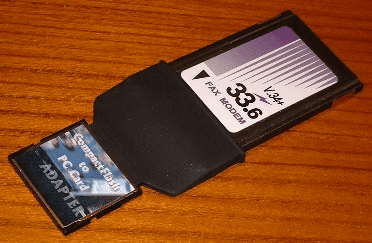

PSI - PCMCIA Expander / Adapter Through a Compact Flash Slot
http://www.psism.com/pca-cf.htm
16-bit only, does not support cardbus

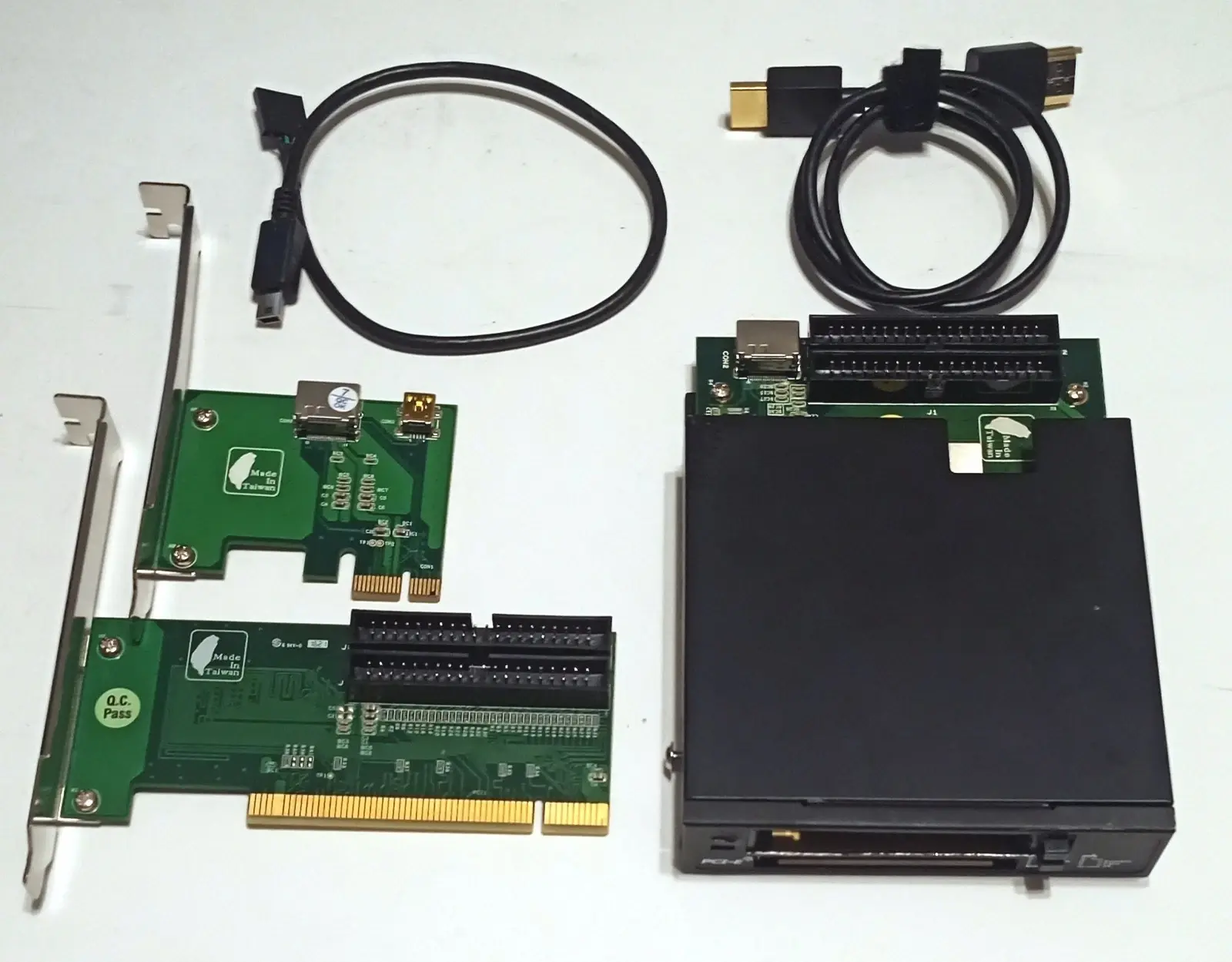

PCD-TP-EXP
Oddball kit that combines Cardbus and ExpressCard in one bay module. Uses two controller cards:
- PCIe x1 card for ExpressCard (uses HDMI cable for PCIe, and mini-USB for USB)
- PCI card for Cardbus
Supports 2 type II or 1 type III PC-Card. 16- and 32-bit cards (Cardbus) supported.
Single ExpressCard 54 slot. Supports PCIe and USB cards. USB-based ExpressCards are hot-swappable. PCIe mode ExpressCards are not hot-swappable.
Both “controller” cards aren’t really controllers at all: they’re completely passive.
All devices feature a “made in taiwan” graphic:
(source: eBay)
PCE10
Like the PCD-TP-EXP, but without the PC Card/Cardbus part.
PCIe x1 card for ExpressCard (PCIe looks like mini-SAS, and mini-USB for USB)
Provides a single ExpressCard 54 slot. Supports PCIe and USB cards. USB-based ExpressCards are hot-swappable. PCIe mode ExpressCards are not hot-swappable.
The “controller” card isn’t really a controller at all: it’s completely passive.
All devices feature a “made in taiwan” graphic:
(source: psism.com)

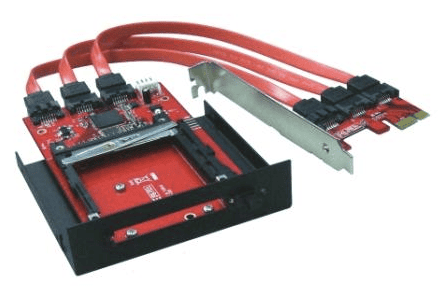

PCE20
Similar to PCE10, but designed for 5.25 in drive bay. Plastic looks different.
Uses a different connector, looks like those used with Sonnet QIO and similar PCIe Extenders.
(source: psism.com)
PCD-101CS
Looks like Ricoh chipset.
Single type III slot, rear. 16- and 32-bit (cardbus) cards.
(source: psism.com)
PCD-202CS
Looks like Ricoh chipset.
2 type II or 1 type III slot.
Support both 32-bit CardBus PC Cards and 16-bit PC Cards, 3.3V, 5V & 12V. (Wait, 12V? Is that real?)
(source: psism.com)
PCD-220CS / PCD-TP-220CS
Bay mounted. 2 type II or 1 type III. 16-bit only, despite being PCI.
(source: psism.com)
PCE01
54mm ExpressCard slot, rear-mount. PCIe x1 card.
Has mini-USB connector for USB-based cards. Supports hot-swapping of PCIe-based cards (so-called “Advanced Type” cards)
(source: psism.com)
Quatech

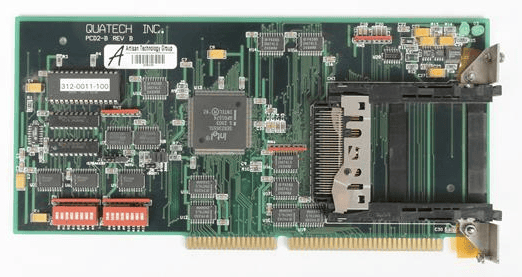

Quatech PCD2-B (back version), PCD2-F (Front version)
Dual PCMCIA Isa Carrier
Intel controller

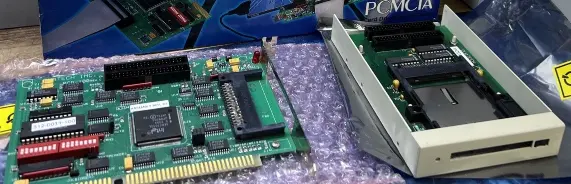

Quatech PCD-100 / PCD-XM2
PCD-100 is MN of controller card, PCD-XM2 is MN of drive bay module.
1 type III slot on controller card, 1 type II slot in drive bay. 16-bit cards only, ISA.
Controller is Intel SE823655L
(source: eBay)
Box art shows other versions with:
- No slot on controller card
- Drive bay with type II slot
RATOC

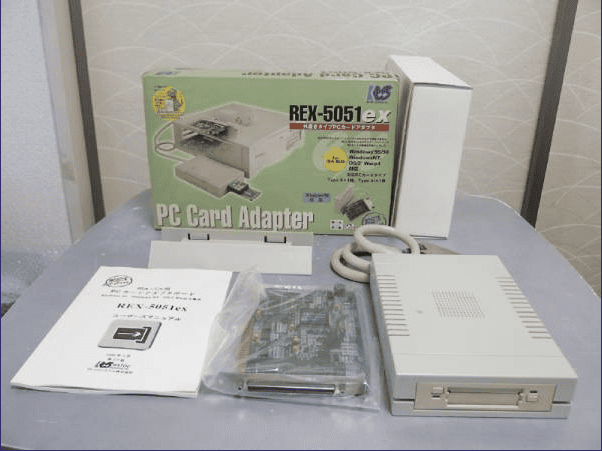

RATOC REX-5051ex
https://www.vogons.org/viewtopic.php?p=598113#p598113
https://www.ratocsystems.com/pdffile/adapter/5051x.pdf
Controller: Omega Micro OU82C365G

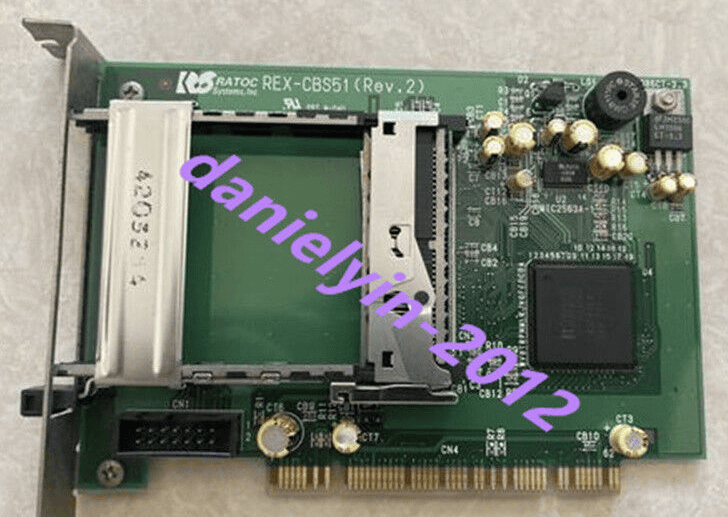

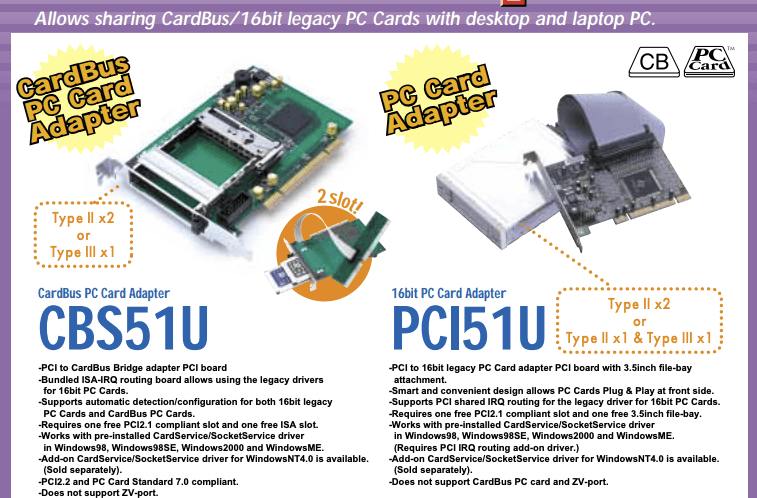

RATOC REX-CBS51U / REX-CBS51U
Two type II or one type III
http://www.ratocsystems.com/english/support/pdffiles/cbs51u1.0.pdf
PCI, but has ISA-IRQ routing board too
Can use 16 and 32 bit cards
Controller: Ricoh RL/RB5C478 Cardbus
https://www.ebay.com/itm/314160126101
http://www.ratocsystems.com/english/contact/pdf/comdex2000/pccard.pdf
RATOC REX-CBS40
https://www.aliexpress.us/item/2251832089262758.html
RATOC REX-CBS52
Dual slot cardbus
Ricoh R5C486

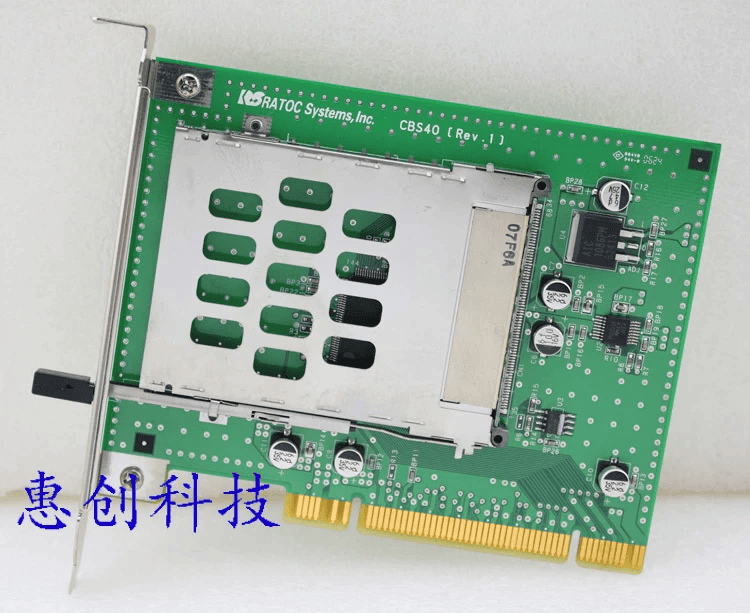

Ratoc REX-CBS40
Single Carbus PCI
https://www.ratocsystems.com/products/subpage/cbs40.html

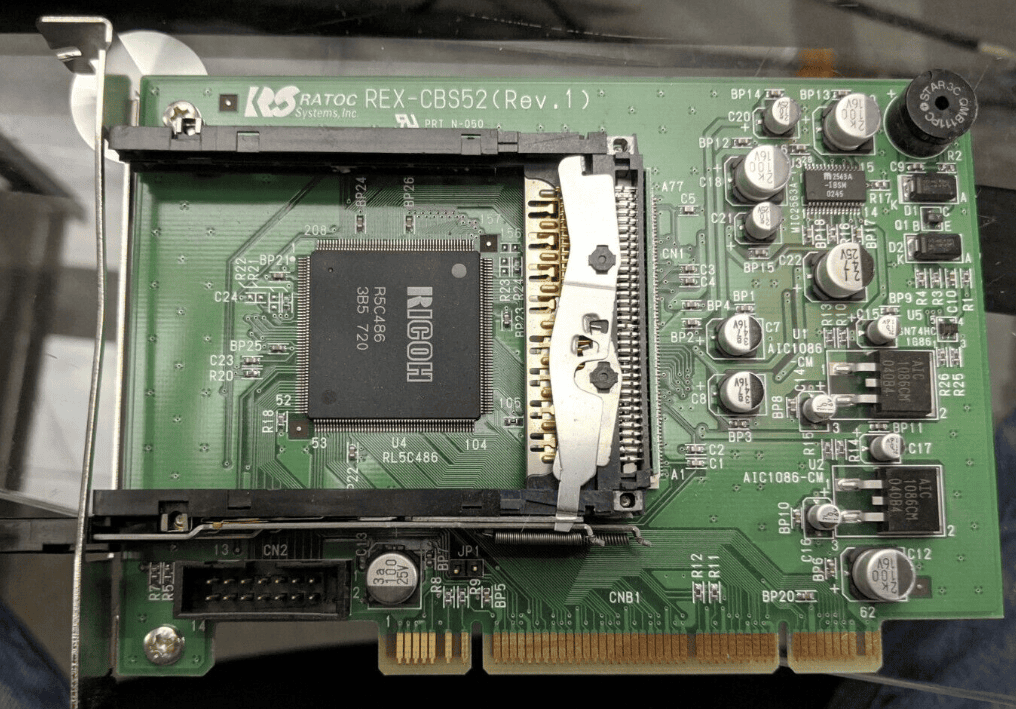

Ratoc REX-CBS52
Dual Cardbus PCI
https://www.ratocsystems.com/products/subpage/cbs52.html
Ratoc REX-505VB
https://scfho.wordpress.com/2009/10/12/pcカードコレクション/

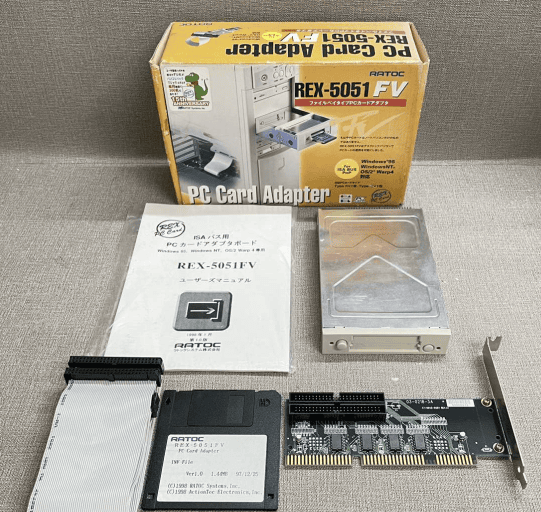

Ratoc REX-5051FC / REX-5051FN
“RATOC REX-5051FV (Internal PC Card Drive, ISA) 9,800 (excl. tax, bulk), T-Zone”
“The REX-5051FN comes with CardWare card software for Windows NT 4.0.”
https://www.ratocsystems.com/products/subpage/5051fv.html
Looks like a Litronic/Greystone clone
SCM

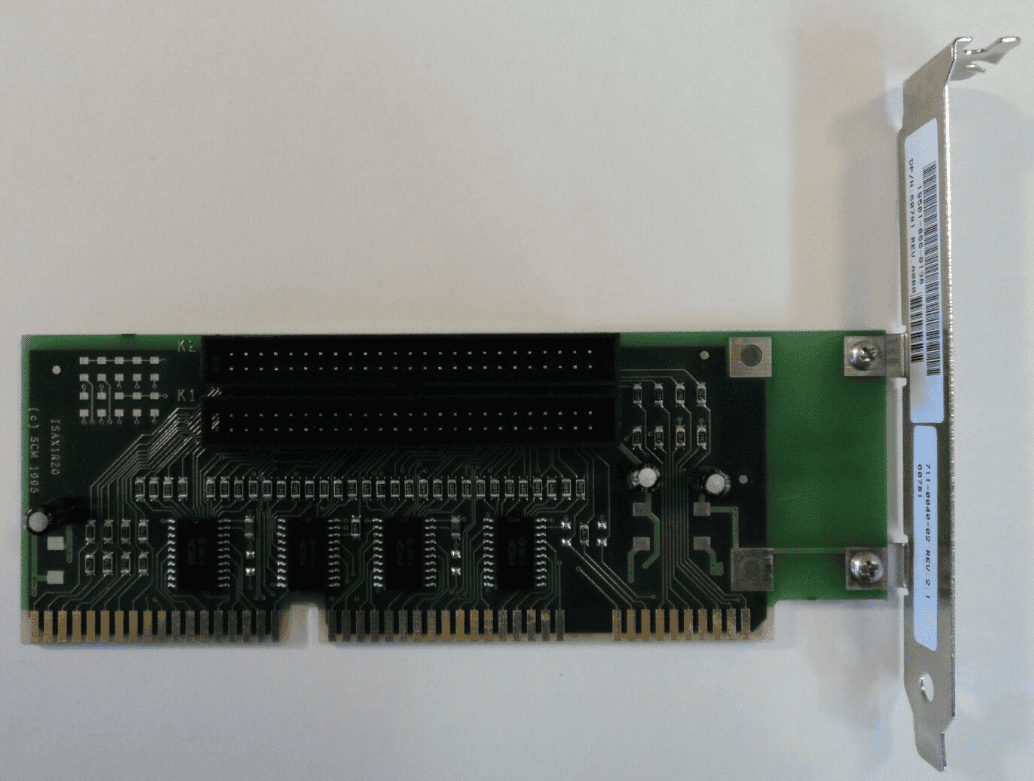

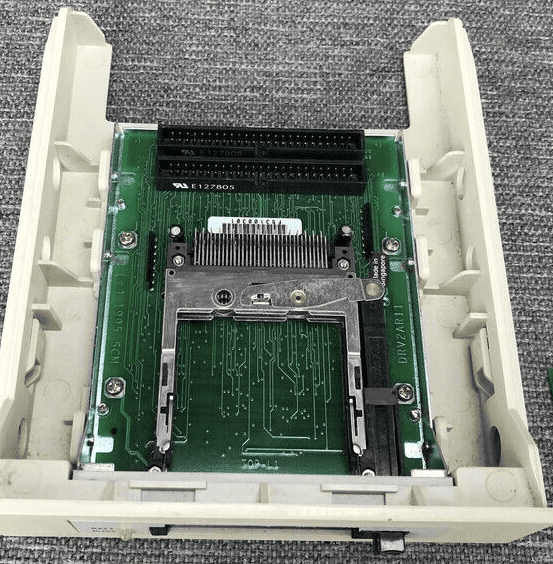

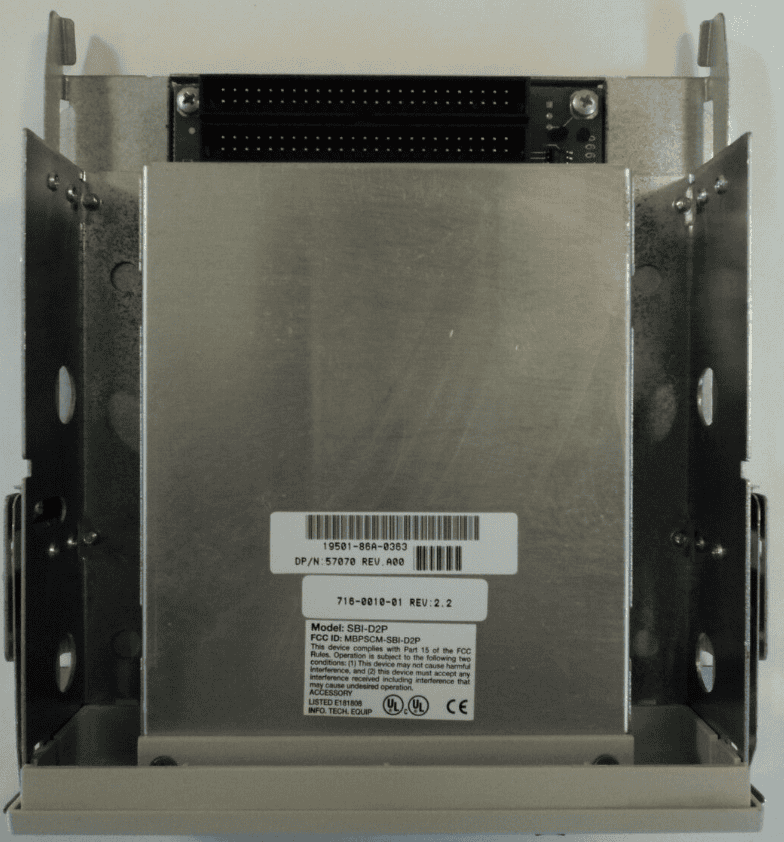

SCM SwapBox SBI-D2P
Same as the one I have
Controller card model: ISAX1R20
Bay model number: DRV2PR22
Controller card is only buffer ICs (74HC244D, 8-bit buffer/line driver with 3-state outputs), real controller must be in drive module

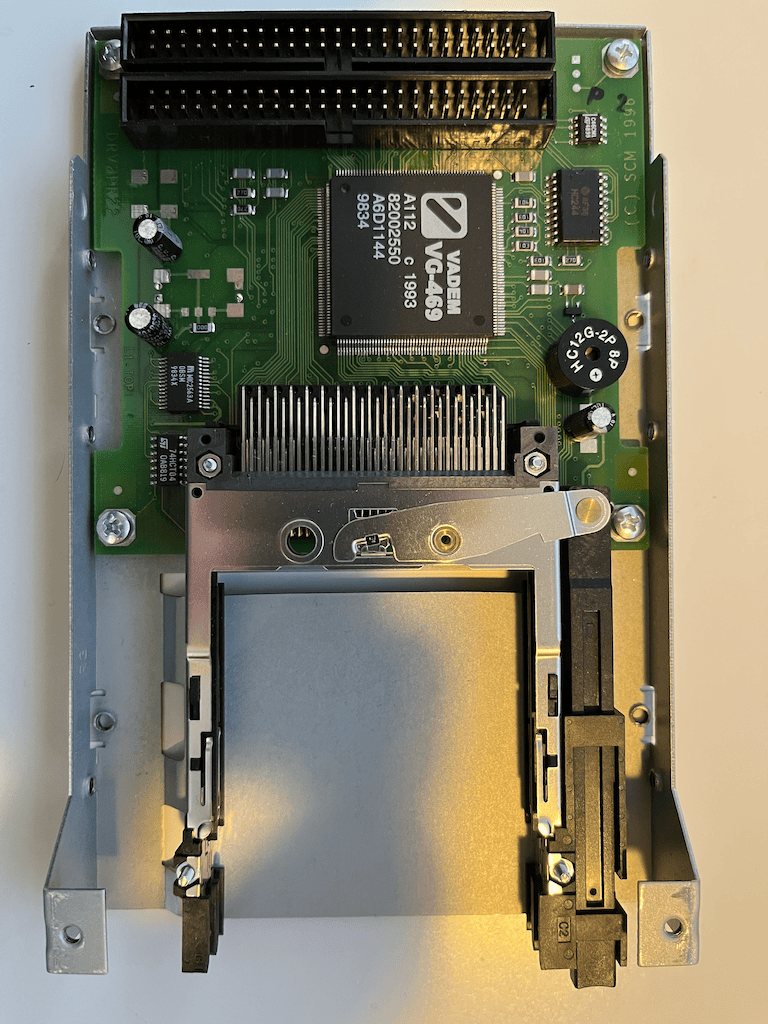

Controller IC (in bay): Vadem VG-469
Two 50-pin connectors
SCM SwapBox PCI Cardbus
Probably the OEM Actiontec AD75000/PC750 kit.
SCM SwapBox
Dual Slot ISA
Controller IC is on bay module: Vadem VG-365
Card model: ISAD2R10
SCM MMCDRIVE SD-r3
Single ISA PCMCIA
Board model: MMCD-DL
Bay marked PCDR REV 3.0
Controller likely Vadem VG-465

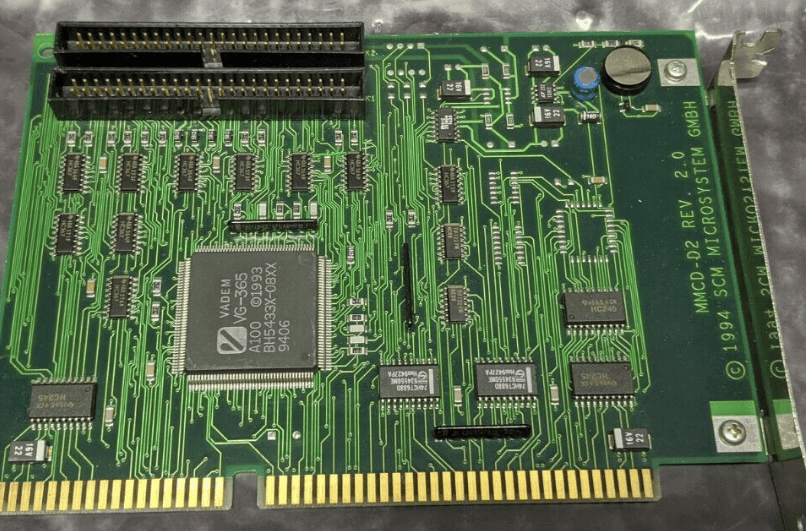

SCM MMCD0D2 Rev 2.0
Probably compatible with SCM MMCDRIVE SD-r3
https://www.ebay.com/itm/293405489656
Controller: Vadem VG-365

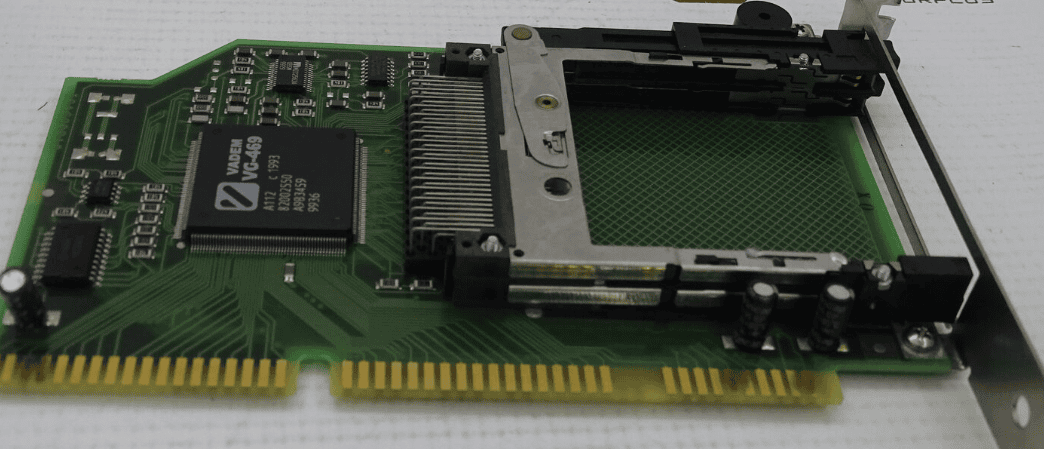

SCM ISAC2PR10
Dual slot ISA PCMCIA
Controller: Vadem VG-469
Sycard

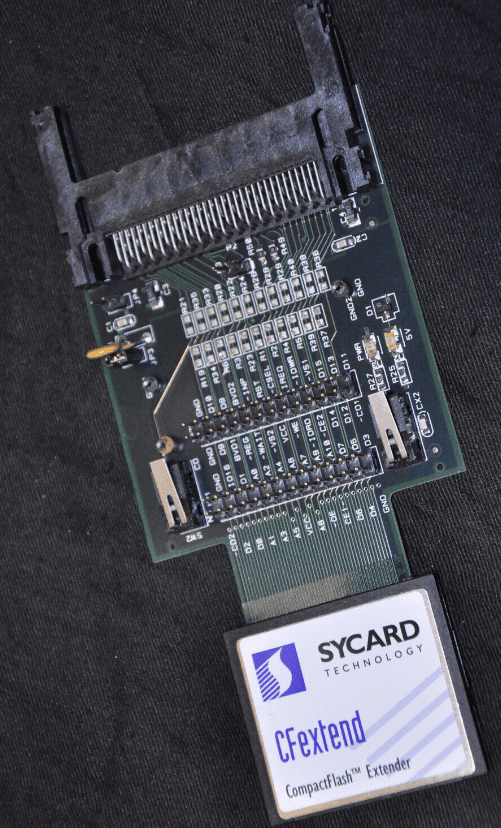

Sycard - CFextend165
https://www.ebay.com/itm/313297883434
Unknown Brand/Manufacturer
SD-PCIPCMS-A1
PCI to 1x Cardbus, PCMCIA
Controller: RICOH R5C485
https://www.area-powers.jp/product/pci/other/pcipcmsa1b.html

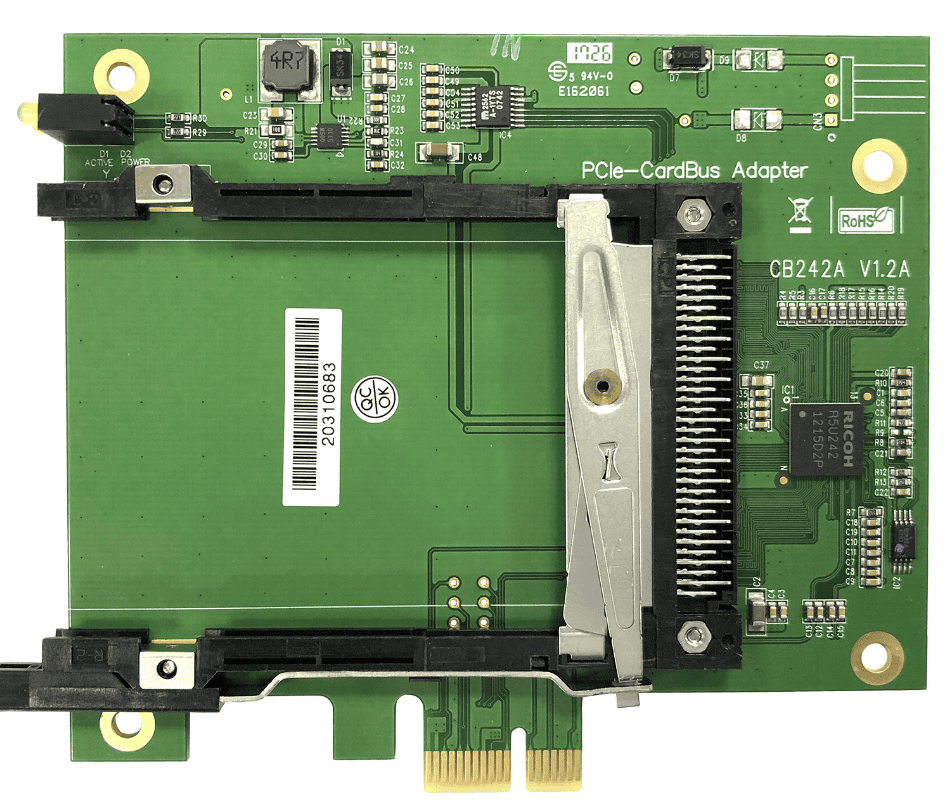

CB242A
http://www.bplus.com.tw/Adapter/CB242A.html
Cardbus to PCI-Express x1
PCMCIA and CardBus
Controller: Ricoh R5U242a
https://scfho.wordpress.com/2014/03/17/cb242a-v1-1a-pci-express-cardbuspcカードリーダー/

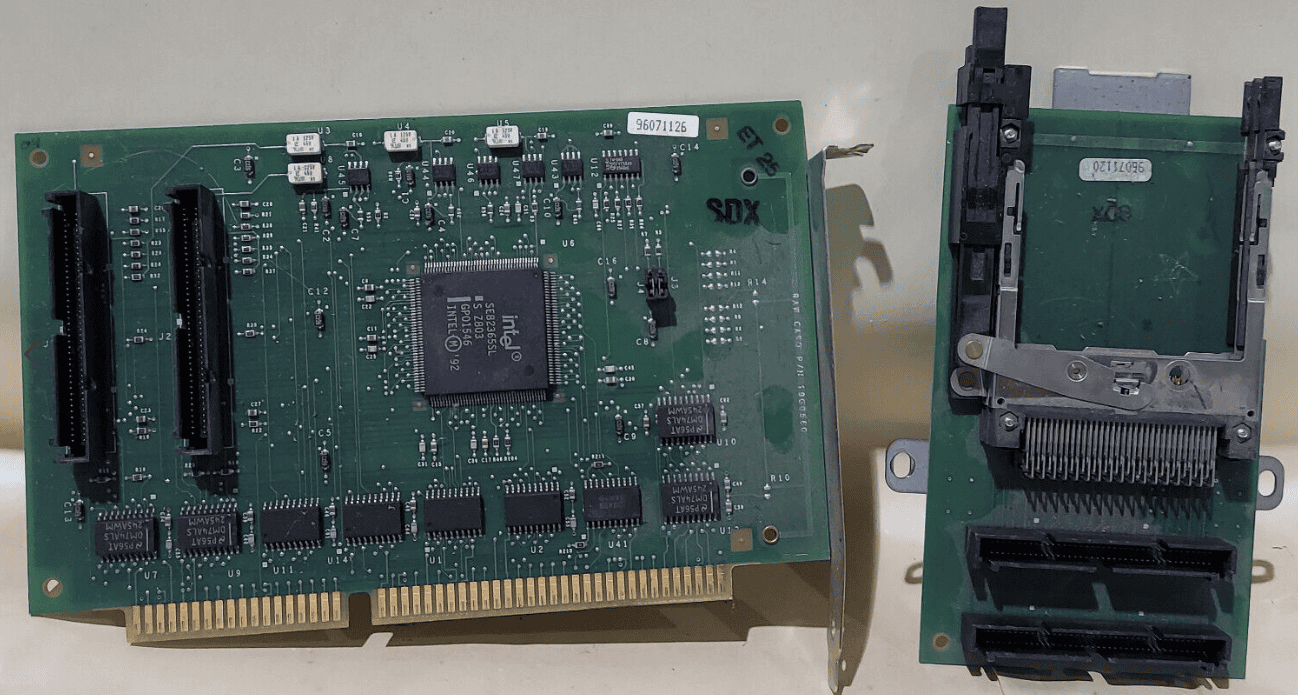

Intel SE82365SL
Dual Slot ISA PCMCIA
Controller: Intel SE82365SL
Card marked: “RAW CARD P/N 1960560”

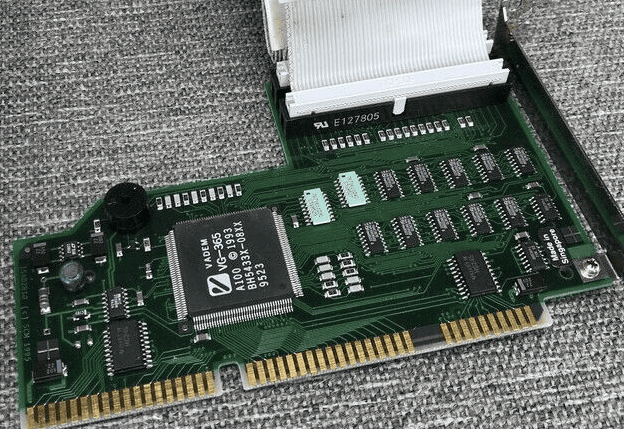

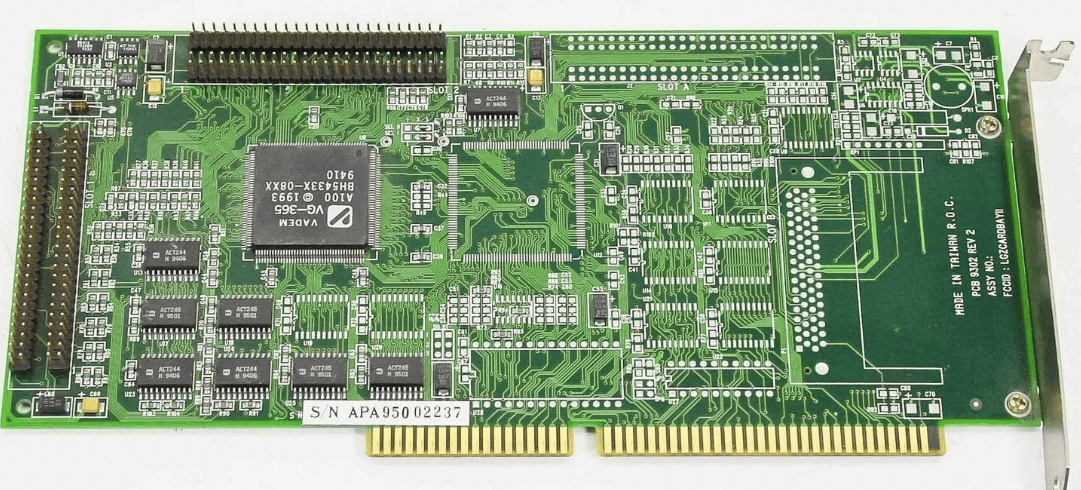

4-slot VG-365 ISA controller
Sold as “Dual scsi card”
FCC ID “LGZCARDBAYII” points to “Cardwell International”
Can house two separate Vadem VG-365 controllers

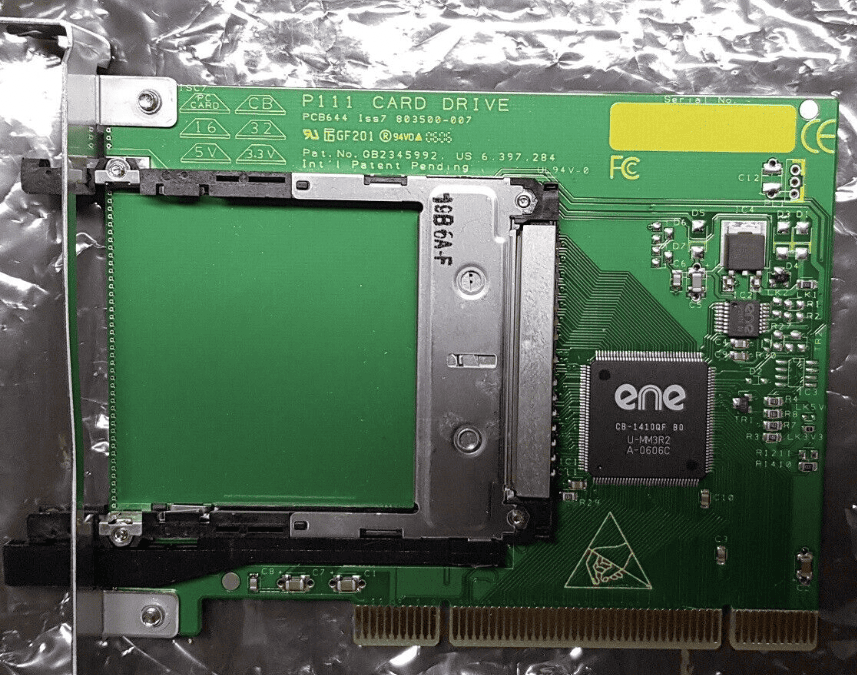

P111 Card Drive
Single Slot Cardbus
ENE CB-1410QF controller

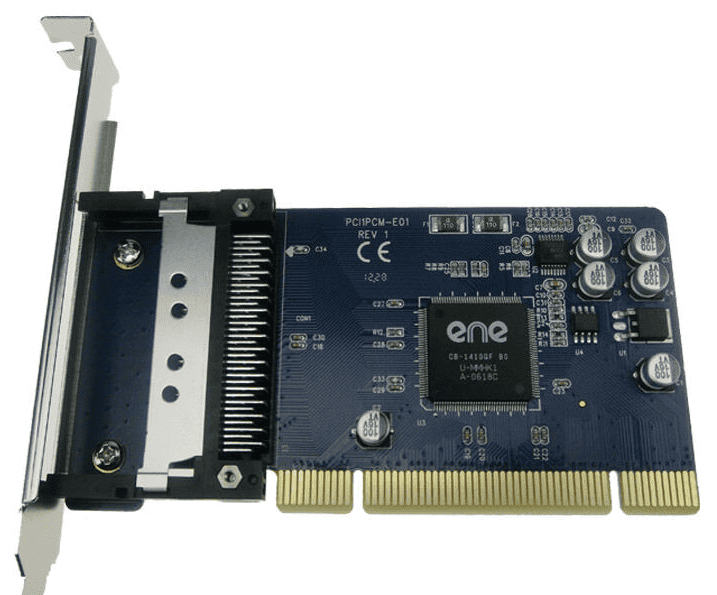

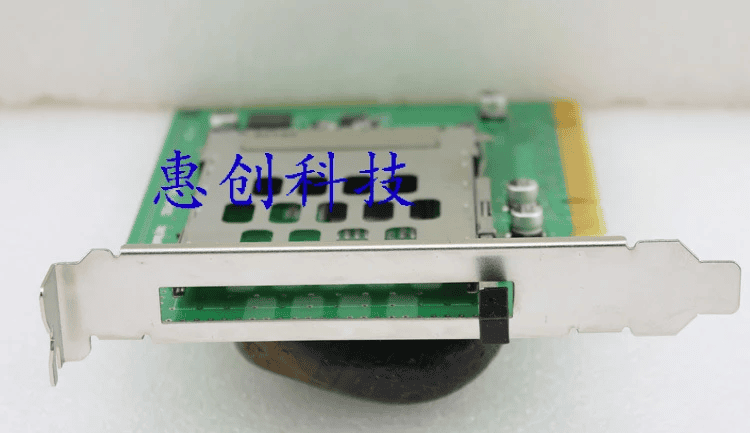

PCI1PCM-E01
Single Slot Carbus
ENE CB-1410QF controller
