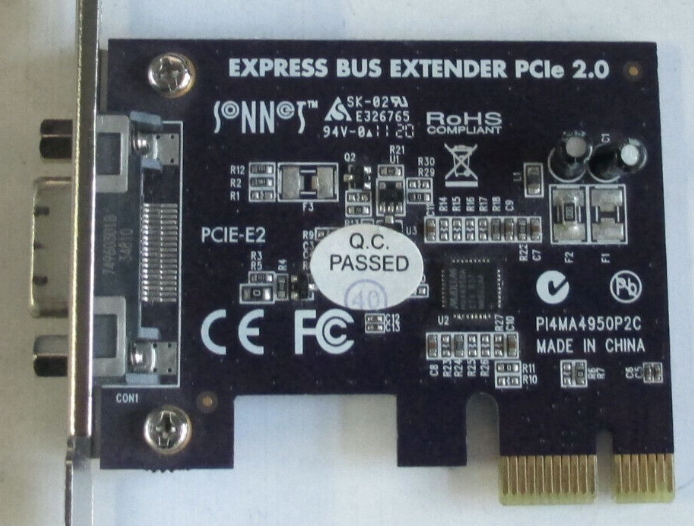

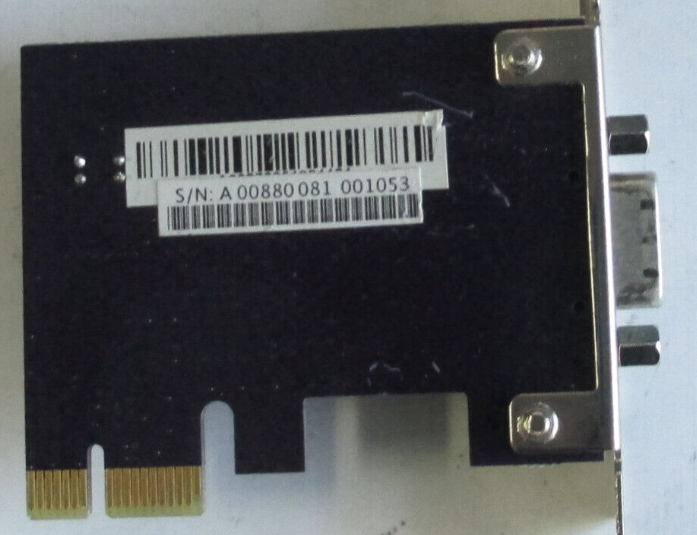

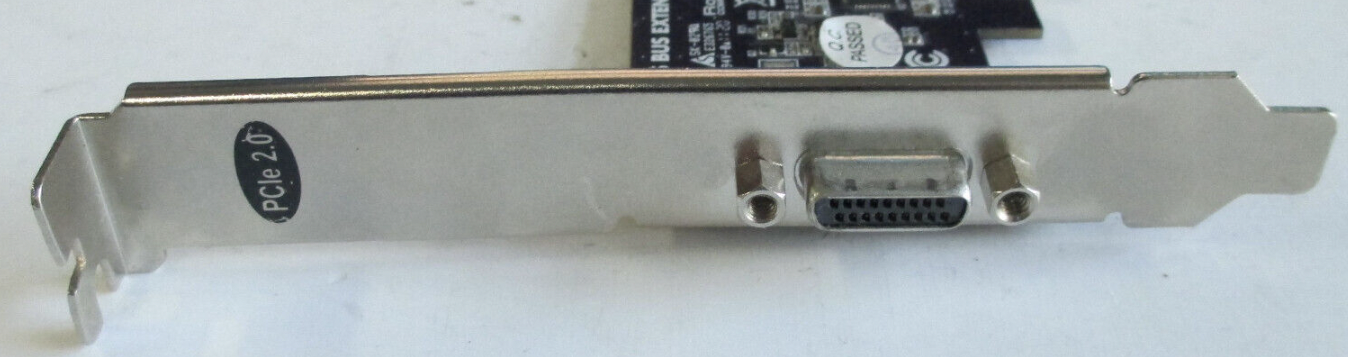

PCIe Card - External Connector

https://www.ebay.com/itm/186096690264

https://www.ebay.com/itm/186096690264

https://www.ebay.com/itm/186096690264

https://www.ebay.com/itm/186096690264

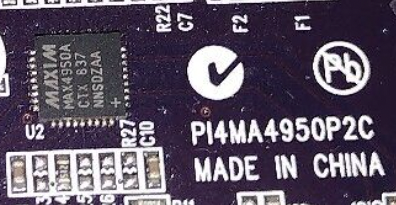

IC is Maxim MAX4950A “Dual PCI Express Equalizer/Redriver”

PCIe 2.0 Bus Extender PCIe Computer Card - Sonnet (sonnettech.com)

Part No.
PCIE-E2	Discontinued
Hardware
Warranty	2-year
Form Factor	PCIe computer card
External Connector	External PCIe 2.0 x1 18-pin
Data Transfer Rate	Up to 430MB/s (Qio CF4), 400MB/s (Qio E3), or 200MB/s (Qio)
Bus Interface	PCI Express 2.0 x1 (PCI Express 1.1 slot compatible)
RoHS Compliant	Yes
Package Contents	• PCIe 2.0 Bus Extender Computer Card
• Documentation

Product Compatibility

• Sonnet Qio, Qio CF4, Qio E3
• AJA® Io Express
• Magma® ExpressBox1, ExpressBox1 Pro
• Matrox® MXO2 Mini, MXO2 LE, MXO2, MXO2 Rack
• Panasonic® AJ-PCD35 Memory Card Drive

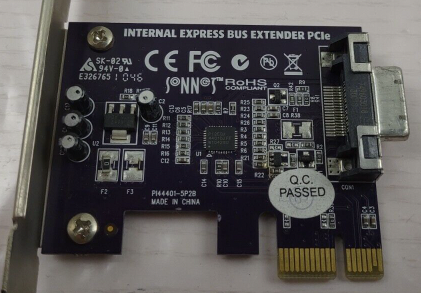

PCIe Card - Internal Connector

Labeled “PI44401-5p2b”, “Internal Express Bus Extender PCIe”.

IC is PI2EQX, same as Aja IOCARD-X1.

https://www.ebay.com/itm/115826776711

https://www.ebay.com/itm/115826776711

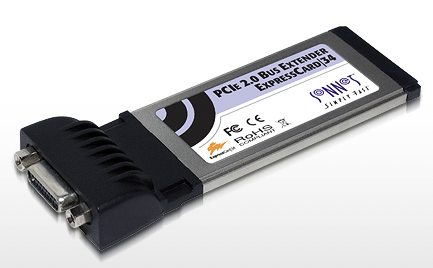

ExpressCard/34

https://www.sonnettech.com/product/legacyproducts/qioexpresscard34.html

Part No.
PCIE2-E34	Discontinued
Hardware
Warranty	2-year
Form Factor	ExpressCard/34 computer card
External Connector	External PCIe 2.0 x1 18-pin
Data Transfer Rate	Up to 430MB/s (Qio CF4), 400MB/s (Qio E3), or 200MB/s (Qio)
Bus Interface	PCI Express 2.0 x1 (PCI Express 1.1 slot compatible)
RoHS Compliant	Yes
Package Contents	• PCIe 2.0 Bus Extender Computer Card
• Documentation

Product Compatibility

• Sonnet Qio, Qio CF4, E3
• AJA® Io Express
• Magma® ExpressBox1, ExpressBox1 Pro
• Matrox® MXO2 Mini, MXO2 LE, MXO2, MXO2 Rack
• Panasonic® AJ-PCD35 Memory Card Drive

Cables

Connector

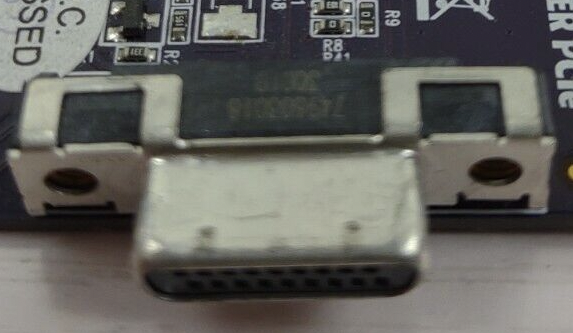

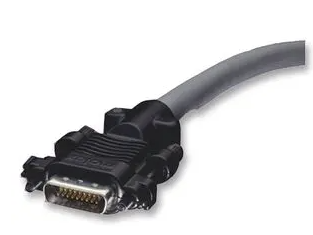

MOLEX 79925-0002: “TDP” (“Triad” Differential Pair) PCIe x1 Cable Assembly, 18 Circuit, 3.0m Length, 4-40 Jackscrew

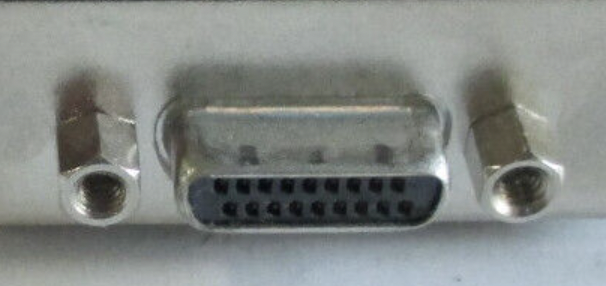

“External PCIe 2.0 x1 18-pin”

Part Numbers

QCB-PCIE-1M - 1-meter external PCIe interface cable

QCB-PCIE-3M - 3-meter external PCIe interface cable

Similar Products

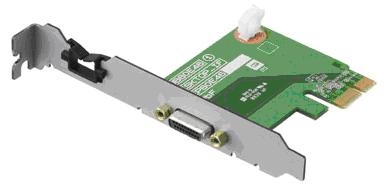

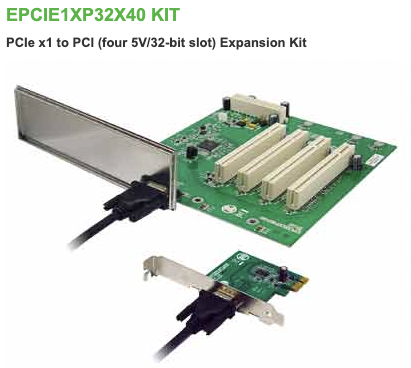

EPCIE1XP32X40 KIT, uses “Molex TDP18 Circuits Connector”

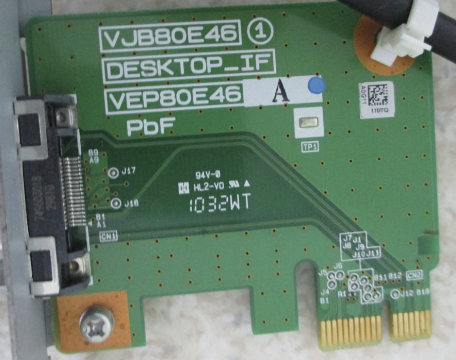

Panasonic AJ-PCD35

Panasonic AJ-PCD35 Memory Card Reader. Although card has no active components. Cable P/N: K1HY18YY0001.

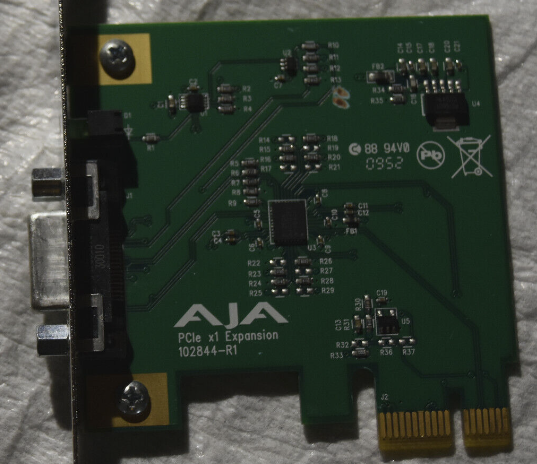

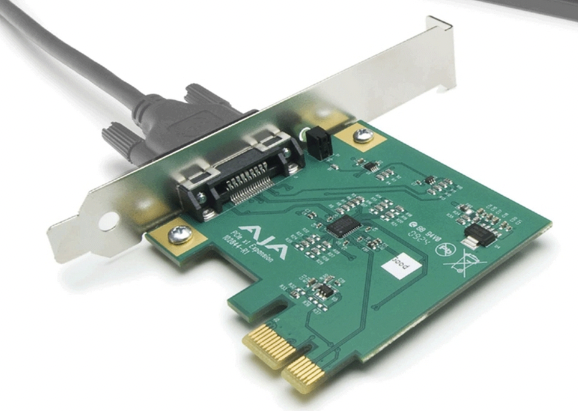

Aja IOCARD-X1

Interface card for Aja Io Express. Sonnet docs say their card can interface with the Aja IO express module, so it stands to reason that the Aja IOCARD-X1 can be used with the Sonnet QIO hardware.

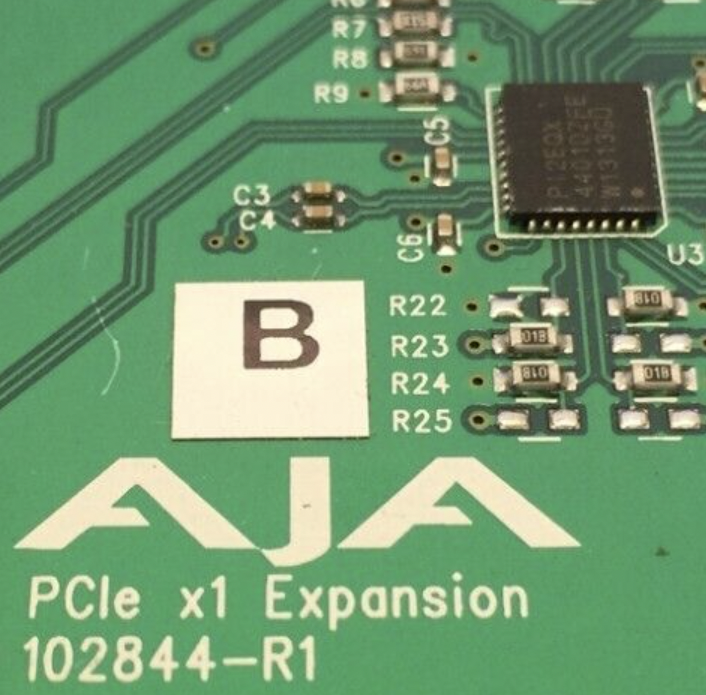

IC is PI2EQX “2.5Gbps x1 Lane Serial PCI-Express Repeater/Equalizer with Clock Buffer & Signal Detect Feature”. Same as Sonnet “Internal Express Bus Extender PCIe”

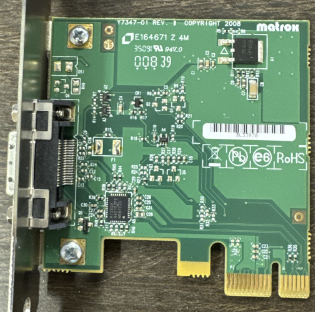

Matrox PCIE/ADP

IC is PI2EQX “2.5Gbps x1 Lane Serial PCI-Express Repeater/Equalizer with Clock Buffer & Signal Detect Feature”. Same as Sonnet “Internal Express Bus Extender PCIe”

https://www.ebay.com/itm/355173785335

Matrox T/ADP

Thunderbolt version of PCIE/ADP

Matrox EXP34/ADP

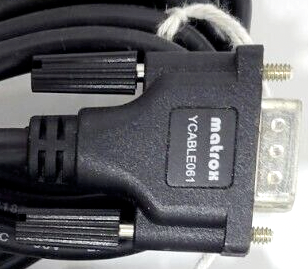

Expresscard/34 version of PCIE/ADP. P/N Y7376-0100. Or 63039622128. Cable is P/N: YCABLE061.

https://www.ebay.com/itm/115941875227
