600JC vs 600JCM
The 600JC and 600JCM are effectively the same model, and differ only with the amount of standard ram (16MB vs 32MB) and the included software.
The 600JC can be upgraded to 32MB of RAM using the HPW-RB32 Ram Card Upgrade.
Battery

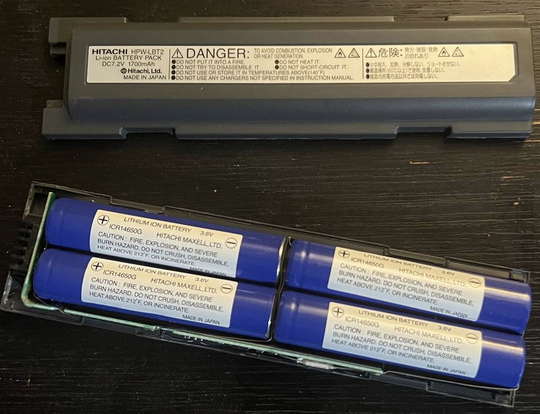

Part Number: HPW-LBT2
Specs:
- 7.2V
- 1700mAH
- 4x 3.6v Li-ion 14650 cells
- NOT 18650
Same battery also used in HPW-600ET “ePlate”
Rebuilding info: https://www.hpcfactor.com/forums/forums/thread-view.asp?tid=21136&posts=1
](Untitled.png)
https://www.hpcfactor.com/forums/forums/thread-view.asp?tid=21136&posts=1
Accessories (Options) List

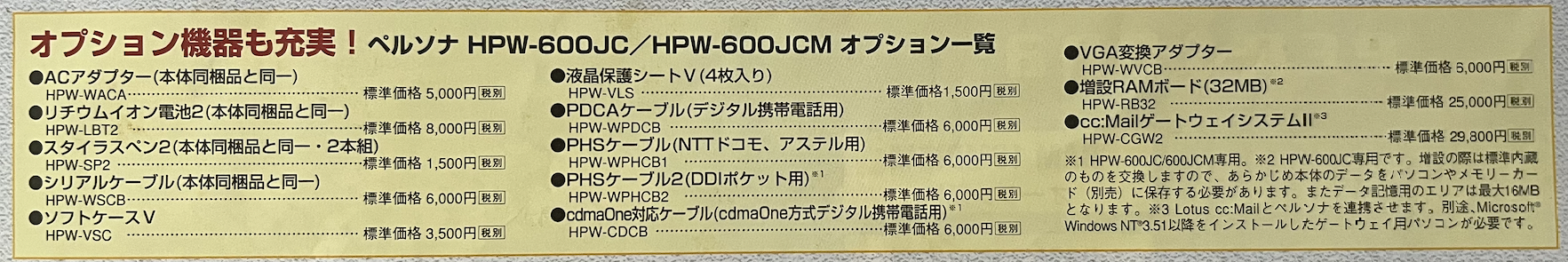

Accessories (Options) list from original product packaging
| PART NUMBER | DESCRIPTION | NOTES |
|---|---|---|
| HPW-WACA | AC Adapter | 10V DC, Positive Tip |
| HPW-LBT2 | Battery | Included battery, also used in HPW-600ET “ePlate” |
| HPW-WSCB | Serial Cable | |
| HPW-VSC | Soft Case | |
| HPW-VLS | Screen Protector, 4 sheets | |
| HPW-WPDCB | PCDA Cable | |
| HPW-WPHCB1 | PHS Cable for NTT DoCoMo | |
| HPW-WPHCB2 | PHS Cable for DDI | Only for 600JC/600JCM |
| HPW-CDCB | cdmaOne Cable | |
| HPW-WVCB | VGA Adapter | |
| HPW-RB32 | 32MB RAM Card | Only for 600JC, effectively upgrades to 600JCM |
| HPW-CGW2 | cc:Mail Gateway System II |
Serial/VGA Port
Requires adapter from 26-pin connector, either HPW-WSCB for RS-232 Serial or HPW-WVCB for VGA-Out.
I’m not aware of a combination adapter that can do both serial and VGA at the same time.
IR
If it’s the same part as the HPW-200JC, then it is IrDA 1.0 (2400bps to 115.2kbps)
