- Desktop adapters for PCMCIA/PC Card/CardBus
Sources I have still not yet covered:
- https://tldp.org/HOWTO/PCMCIA-HOWTO-2.html
- For Elan P-series PCI card readers based on the Cirrus PD6729 PCI-to-PCMCIA bridge chip, the
i82365driver requires airq_mode=1parameter. - With SCM Microsystems SBP series PCI card readers (which are also being distributed with Lucent WaveLAN IEEE cards), and for the Synchrotech PCM-CR-PC2IF and PCM-CR-PC2IR, it is necessary to specify
irq_mode=0for thei82365module, to force use of PCI interrupts.
- For Elan P-series PCI card readers based on the Cirrus PD6729 PCI-to-PCMCIA bridge chip, the
- http://www.sycard.com/linkhost.html
- https://web.archive.org/web/20091118220243/http://www.basterfield.com/pc110/extras.htm
Amtron
Amtron PCIE-CB110
PCI-Express x1 to Cardbus
https://www.amtron.com/reader/pciecb110.htm
Does NOT support 16-bit cards, does NOT support hot-swapping.
Windows 7 x64 drivers
Amtron PCD-TP-110CS (aka DR08)
Single-slot Cardbus PCI
Supports 16- and 32-bit cards
Controller: TI PCI1510
Antec/ActionTec
Antec DataChute PCI (aka ActionTec PC 750)
Ricoh controller
DOES NOT SUPPORT CARDBUS
Card Master

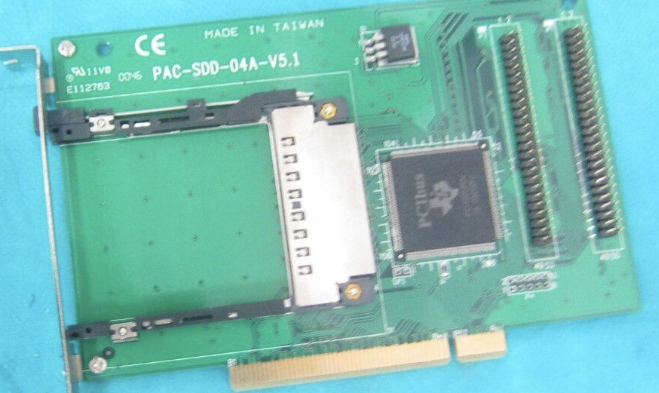

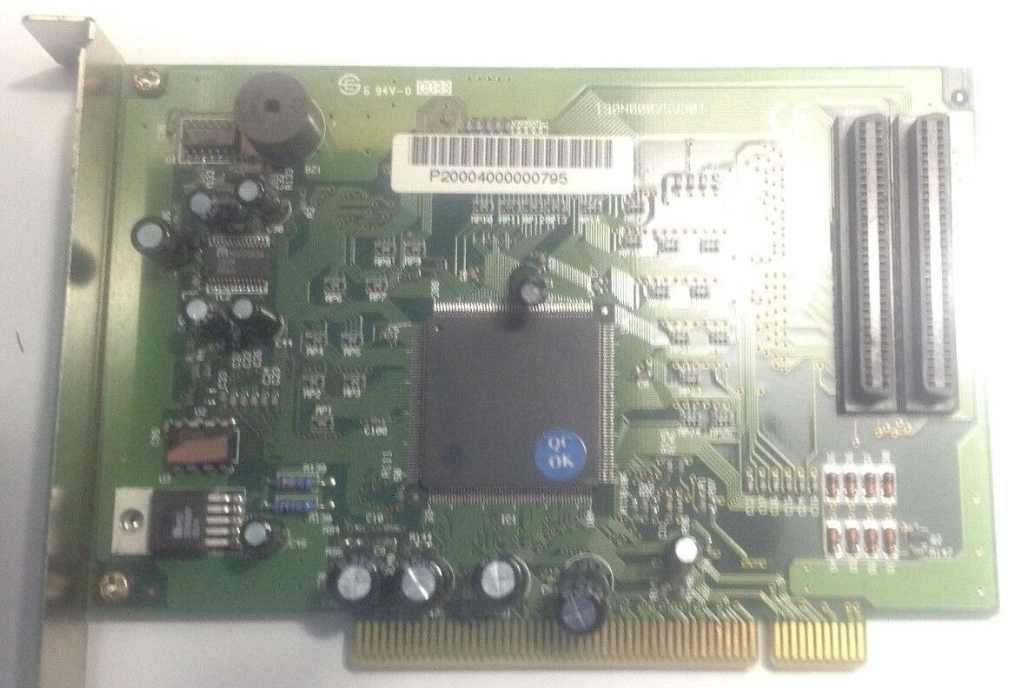

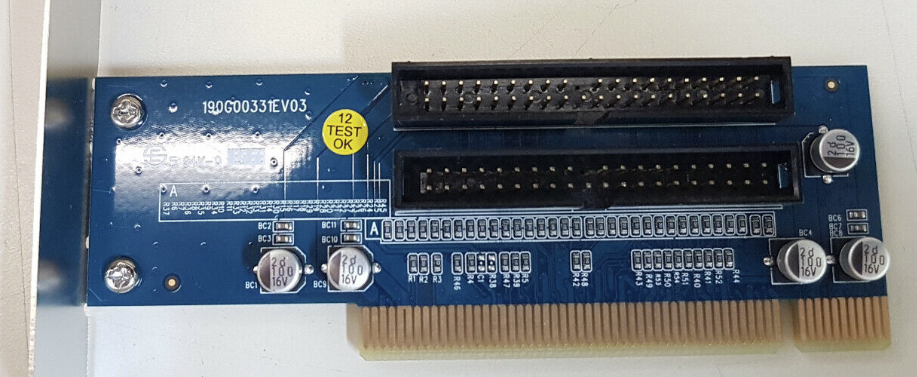

PAC-SDD-04A-V5.1 (aka Card Master-PCI-IF)
http://www.cardmaster.com.tw/prod-pci.htm
Dual cardbus (in in card, 1 in bay) PCI
TI 1420 controller
For PCD-995 or Card Master-PCI-IFD

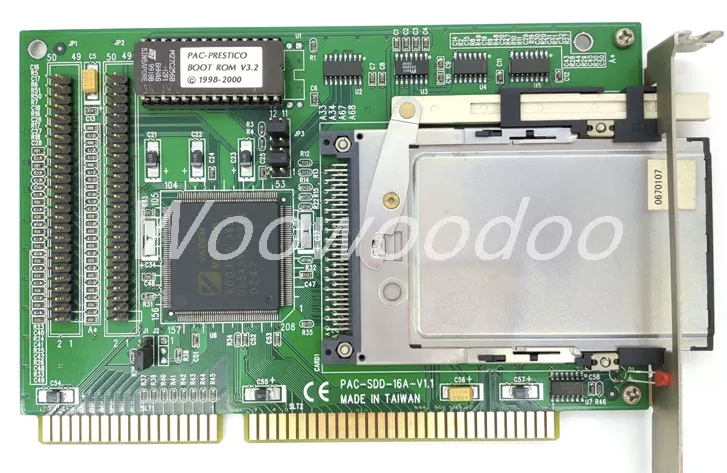

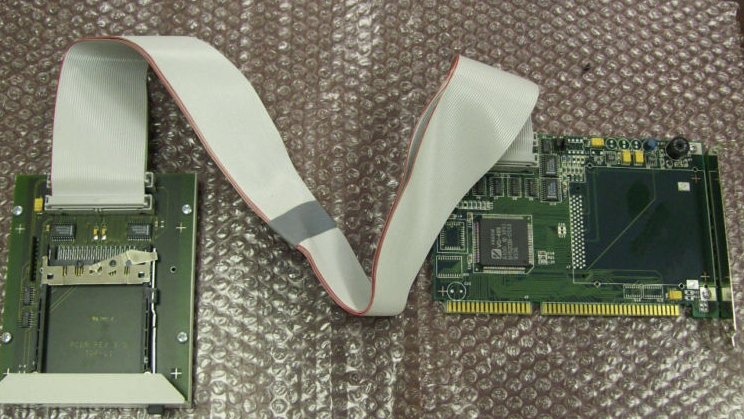

PAC-SDD-16A-V1.1 (Card Master –IF/468,IFD/468,FD1/468, FD2/468)
Microsoft Word - IF468.DOC (cardmaster.com.tw)
Isa dual slot (1 on card, 1 in bay)
Vadem VG-468
Bootable with ROM installed
PAC-SDD-Q2 (aka RDM-210A)
Single slot onboard with single external PCMCIA to isa with boot rom
Controller: Vadem VG-365

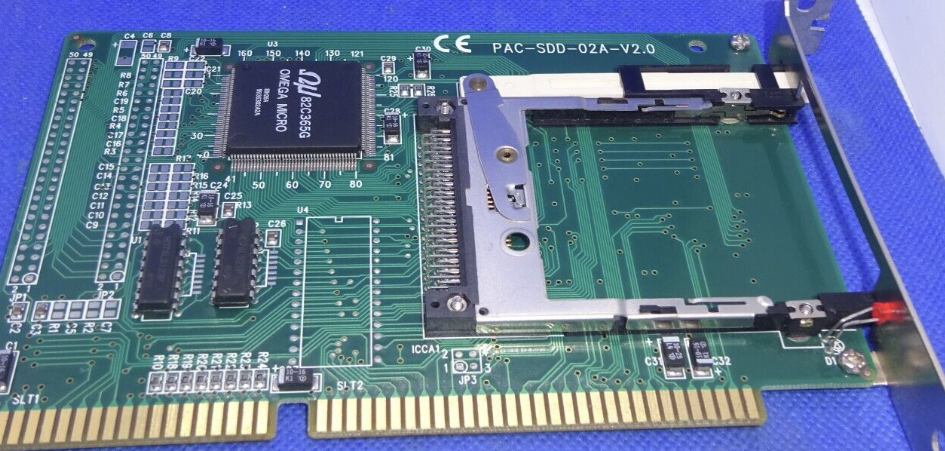

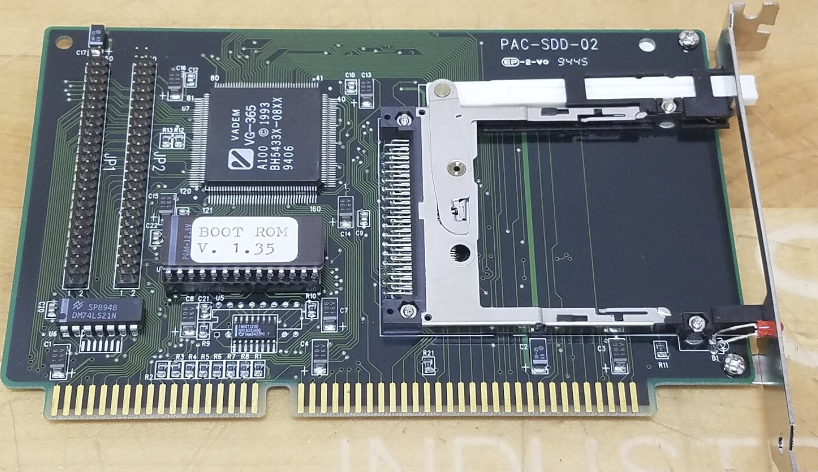

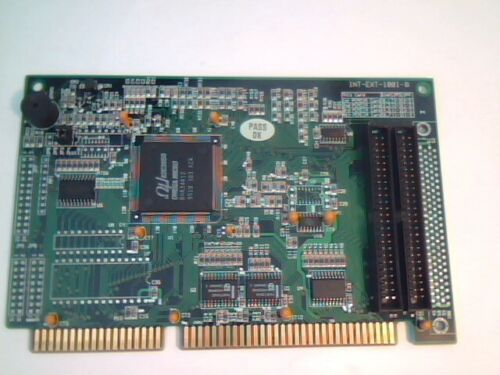

PAC-SDD-02A (aka PacMaster) or IPCA-SDD-02A
Single slot PCMCIA ISA
Controller: Omega Micro 82C365G (probably VG-365 clone)
https://www.ebay.com/itm/255907952959

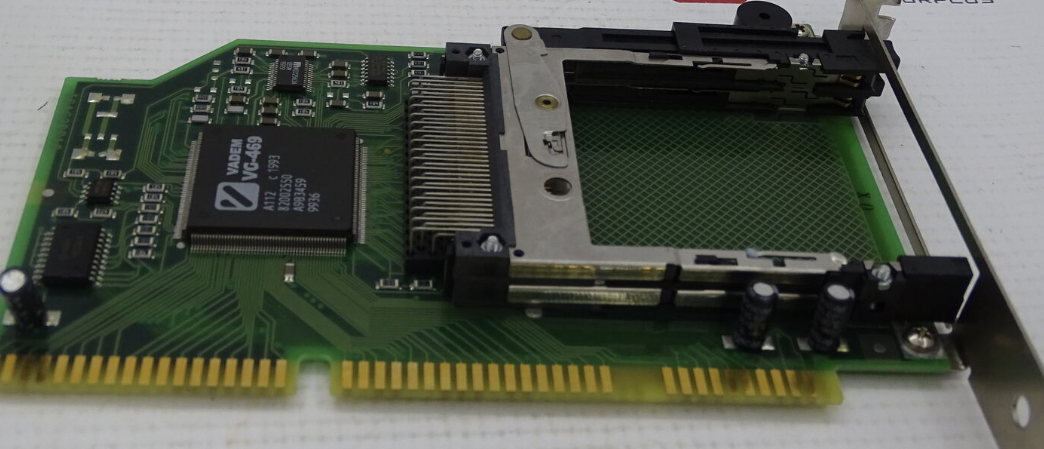

Card Master FD2/469
Vadem VG-469LF
http://www.cardmaster.com.tw/prod-isa.htm
http://www.cardmaster.com.tw/pro_pdf/C.M.FD2-469.pdf

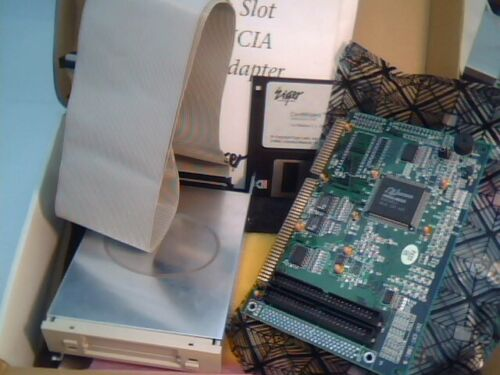

Eiger
Eiger ESA-2000
https://www.ebay.com/itm/134041042148
Probably same as REX-5051fx
Elcard

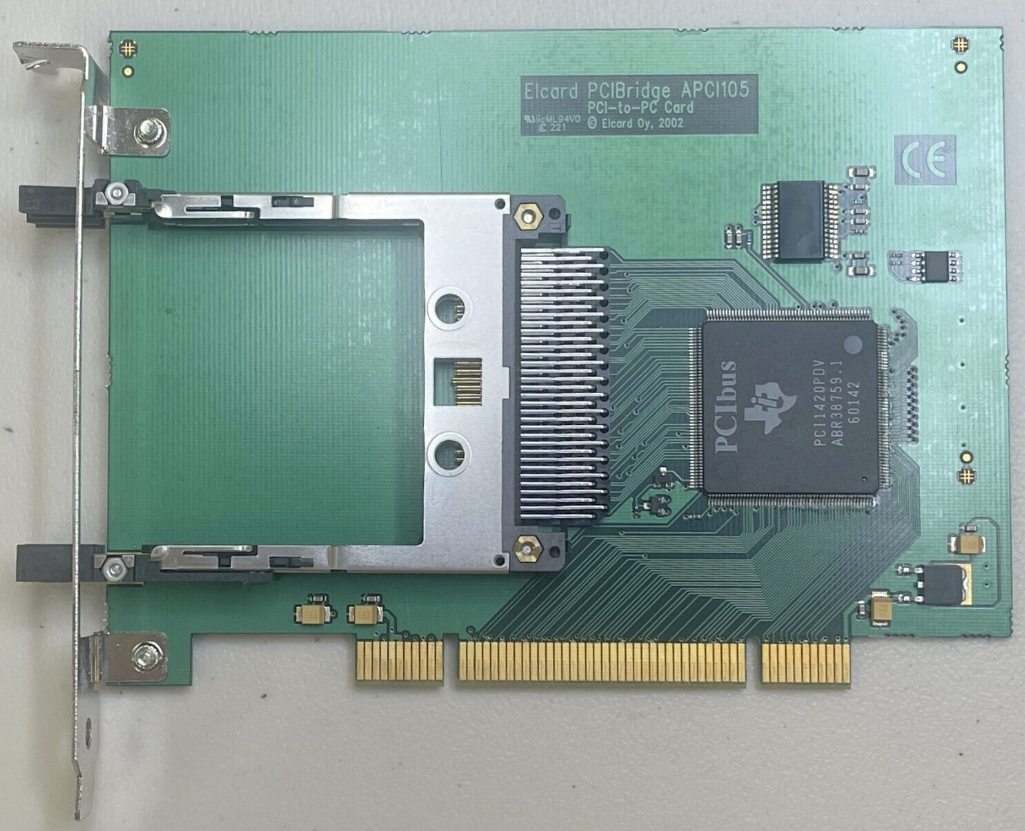

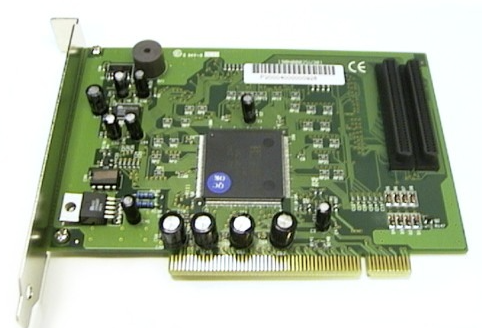

Elcard PCIBridge APCI105
PCI-to-PC Card
PCI1420ODV Controller
Dual Cardbus
Elan

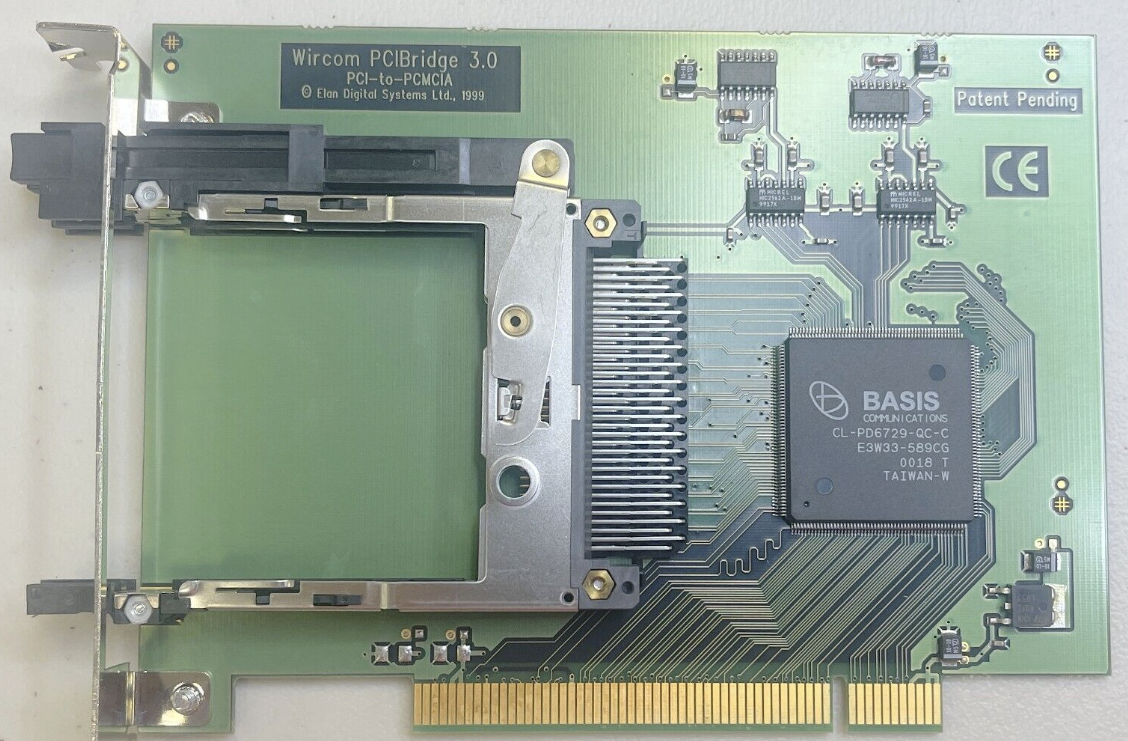

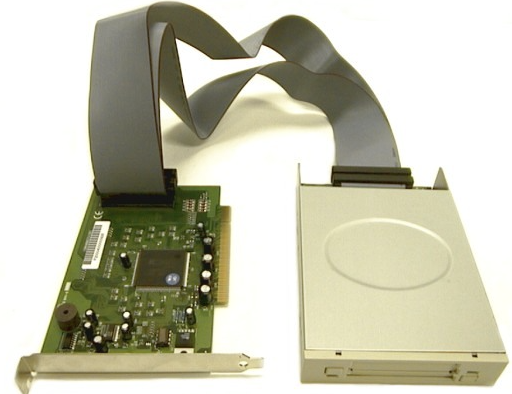

Elan Systems Wircom PSIBridge 3.0
PCI-to-PCMCIA
Dual Slot
Controller: Basis CL-PD6729-QC-C
Similar in design to Elcard PCIBridge APCI105
Elan Twin Front Slot Universal PCI to PCMCIA model P423
NOT CARDBUS

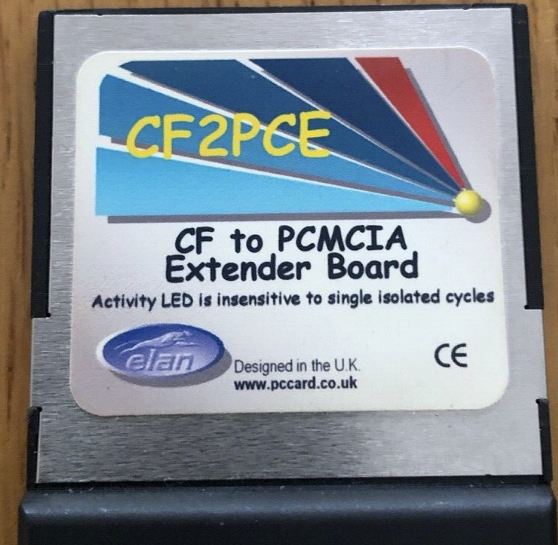

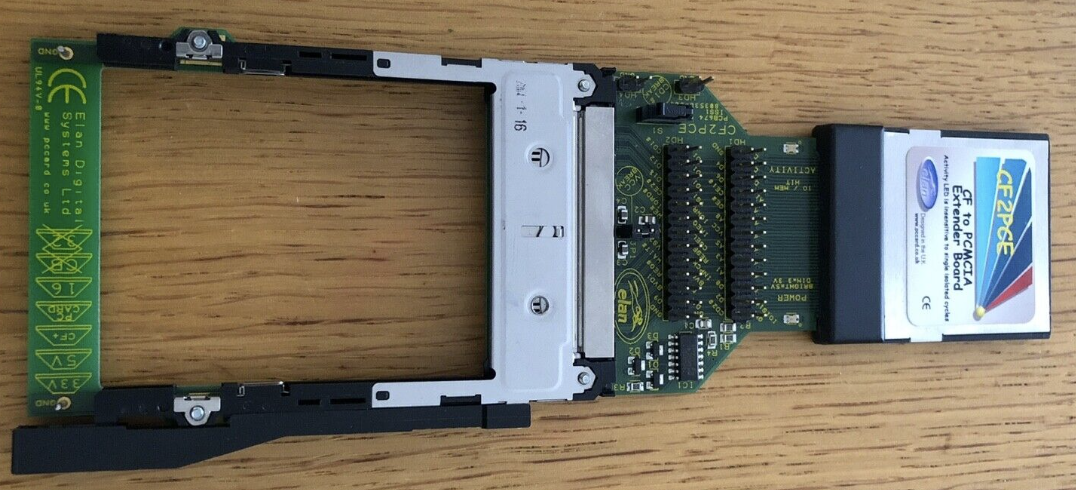

Elan Cf2pce - compact flash card to pcmcia extender board (AKA TS-F-CF2PCE)
https://www.ebay.com/itm/254591308156
Elan Digital Systems, Ltd (www.pccard.co.uk)

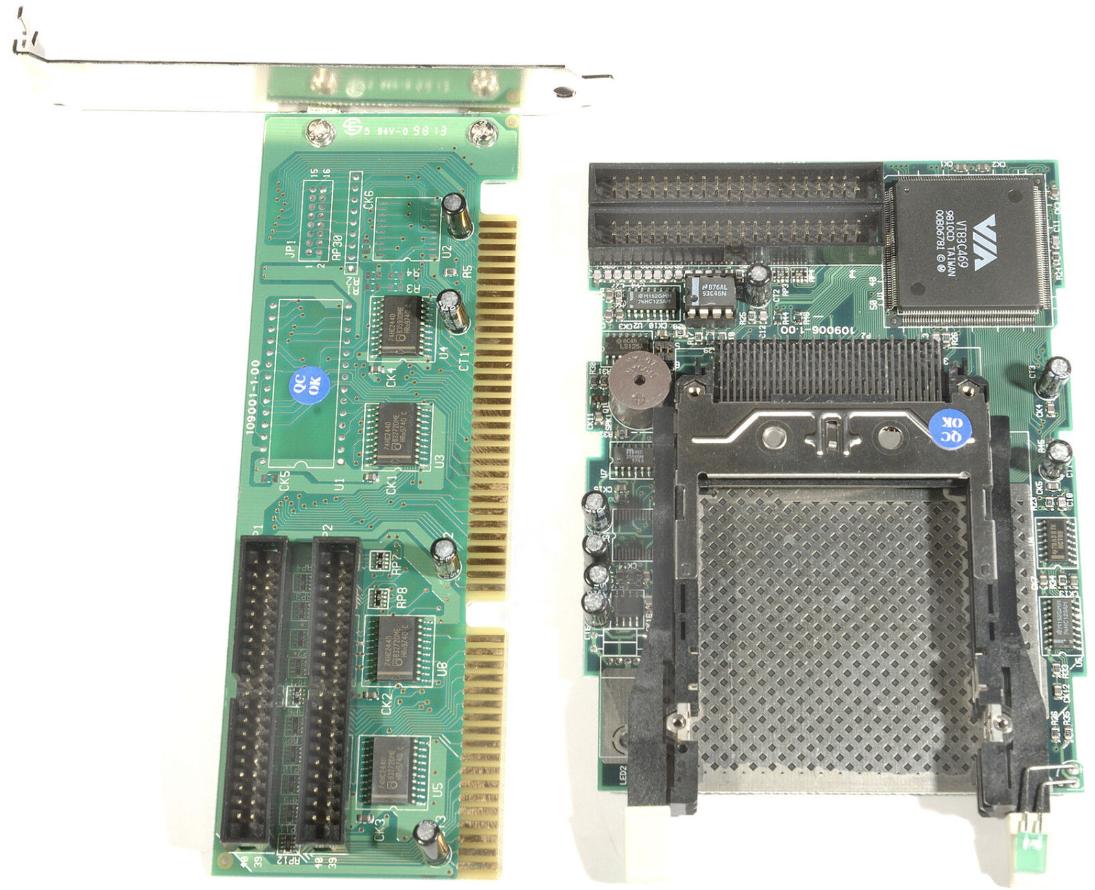

Litronic/Greystone

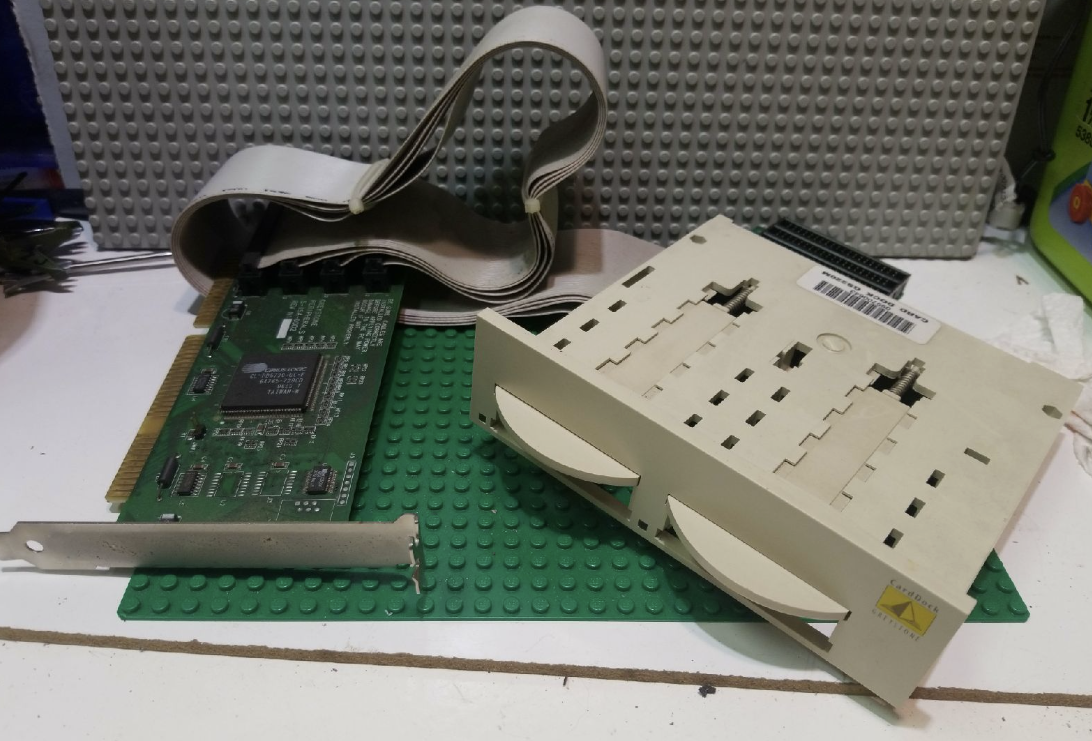

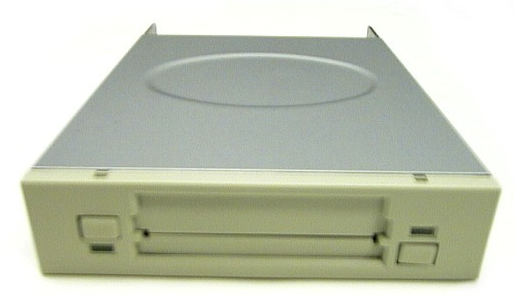

Litronic/Greystone Dual Slot ISA (aka Antec DataChute, Linksys ProConnect PCMRDWR)
Controller IC is on bay module: VT83C469

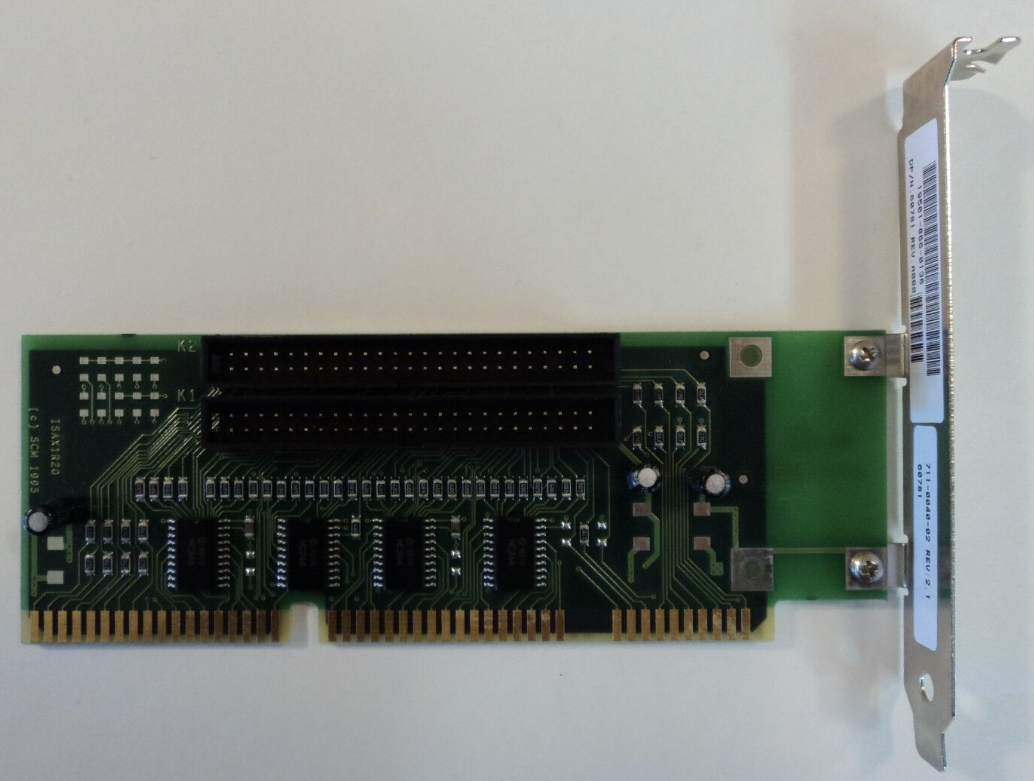

Controller Cards is ISA, only has buffer ICs (74HC244D, 8-bit buffer/line driver with 3-state outputs), two 40-pin cables

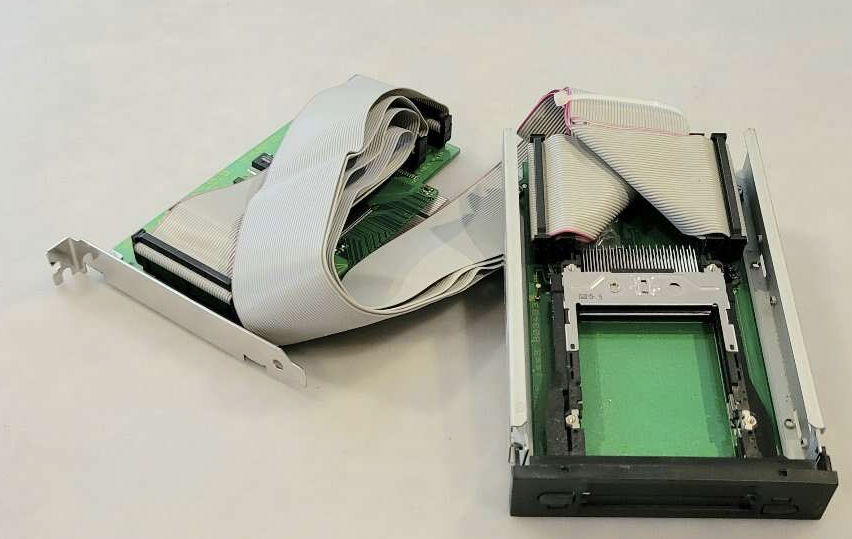

Greystone CardDock
Controller: Cirrus Logic CL-PD6720-QC-E
Controller card PN: S-ISA-0002
Uses 4 40-pin cables
Logitec (NOT Logitech)

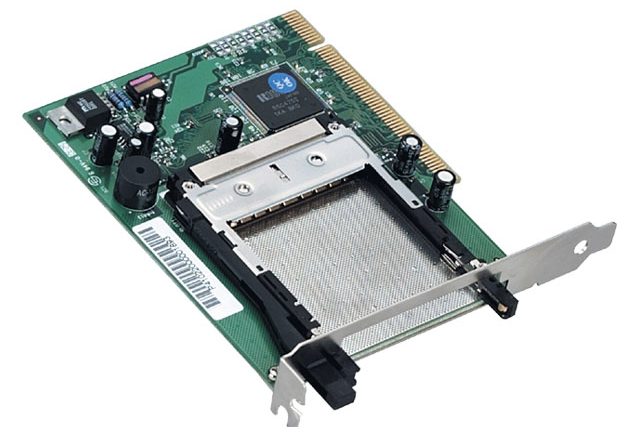

Logitec LPM-CA10RP
PCI to single Cardbus
RICOH R5C475II
https://www.logitec.co.jp/products/card_rw/lpmca10rp.html
PSI

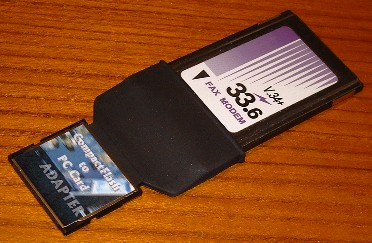

PSI - PCMCIA Expander/Adapter Through a Compact Flash Slot
http://www.psism.com/pca-cf.htm
16-bit only, does not support cardbus
Quatech

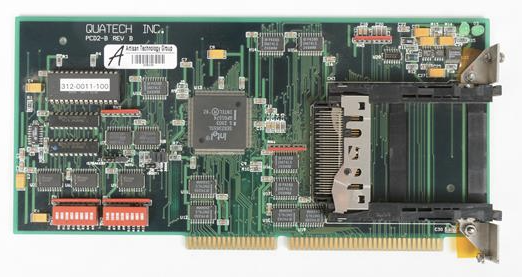

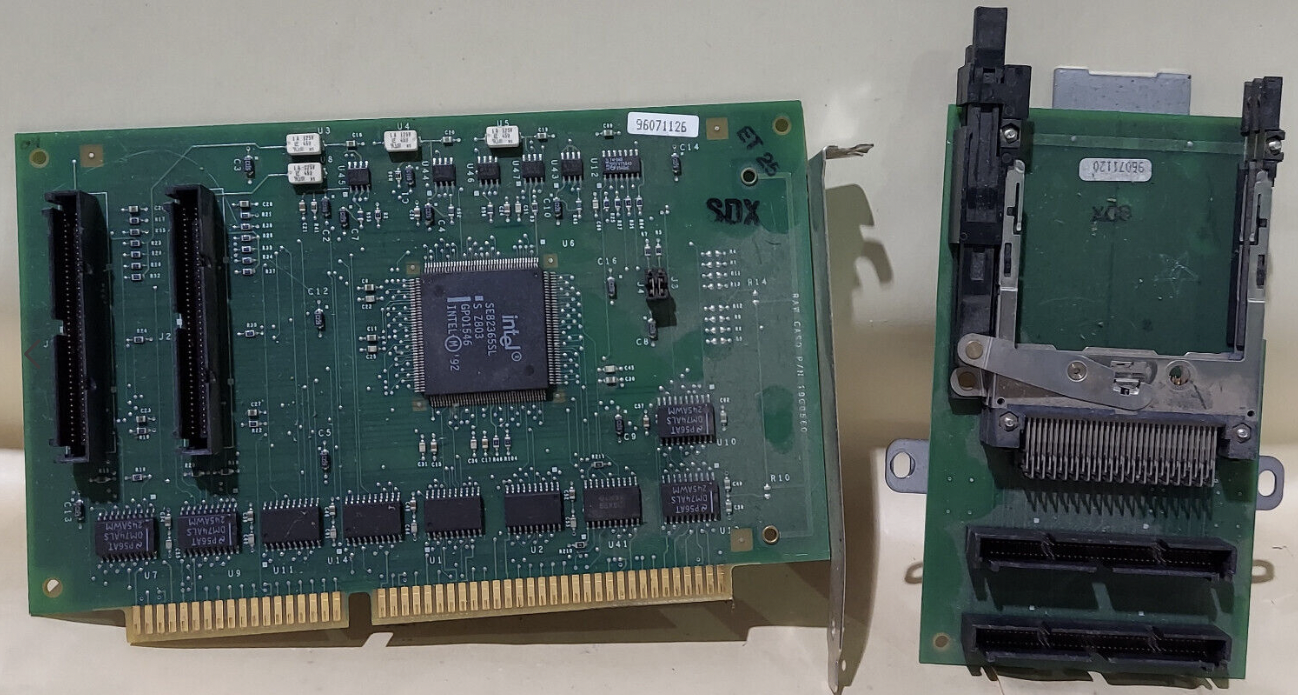

Quatech PCD2-B (back version), PCD2-F (Front version)
Dual PCMCIA Isa Carrier
Intel controller
RATOC

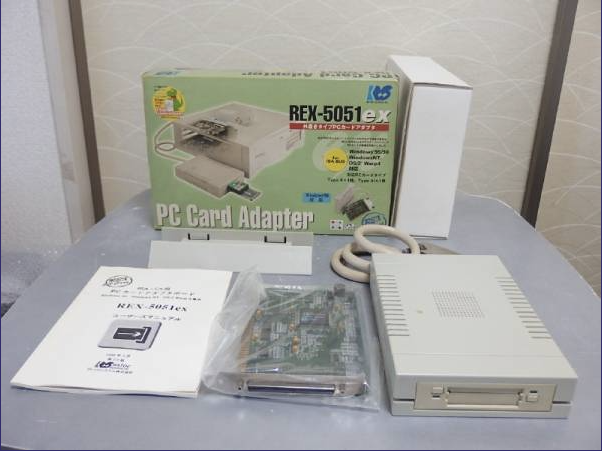

RATOC REX-5051ex
https://www.vogons.org/viewtopic.php?p=598113#p598113
https://www.ratocsystems.com/pdffile/adapter/5051x.pdf
Controller: Omega Micro OU82C365G

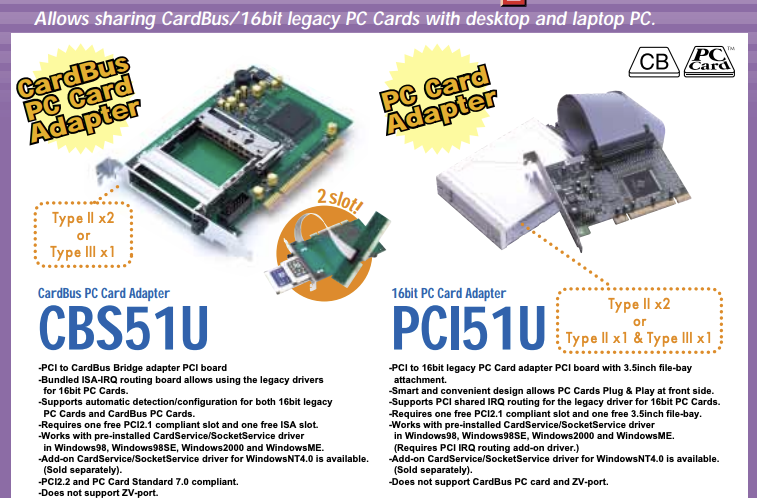

RATOC REX-CBS51U / REX-CBS51U
Two type II or one type III
http://www.ratocsystems.com/english/support/pdffiles/cbs51u1.0.pdf
PCI, but has ISA-IRQ routing board too
Can use 16 and 32 bit cards
Controller: Ricoh RL/RB5C478 Cardbus
https://www.ebay.com/itm/314160126101
http://www.ratocsystems.com/english/contact/pdf/comdex2000/pccard.pdf

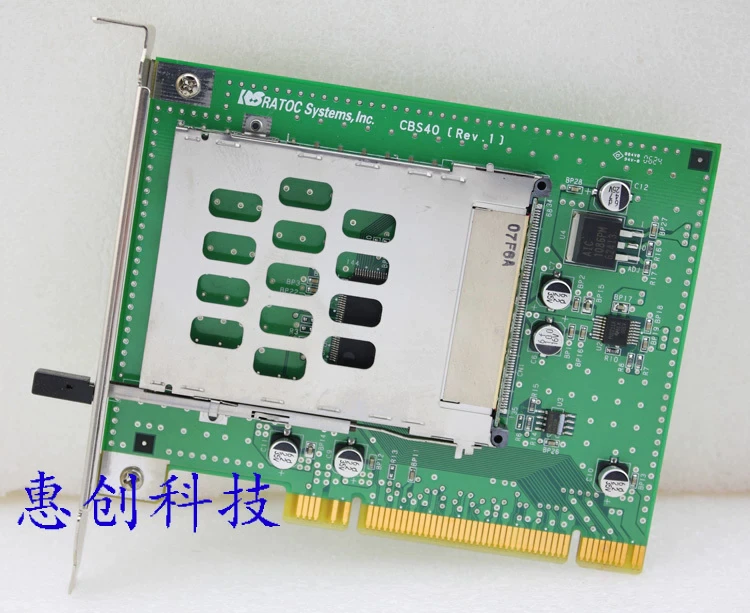

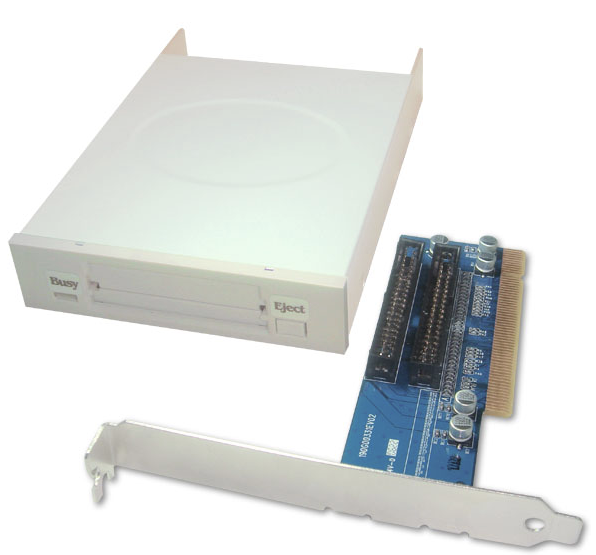

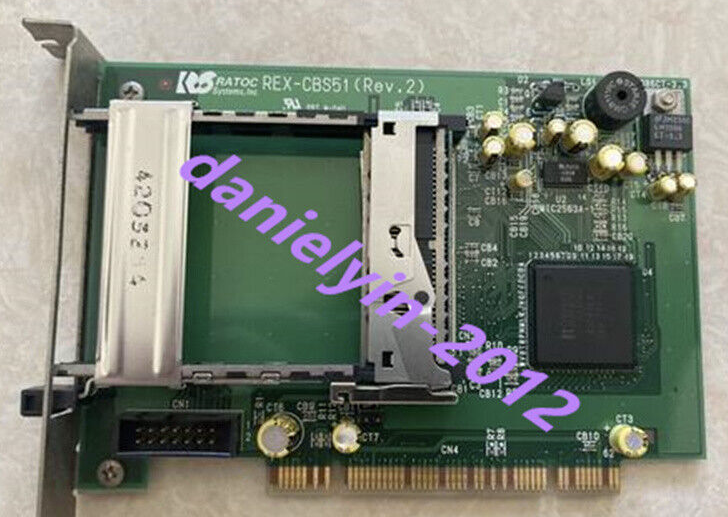

RATOC REX-CBS40
https://www.aliexpress.us/item/2251832089262758.html

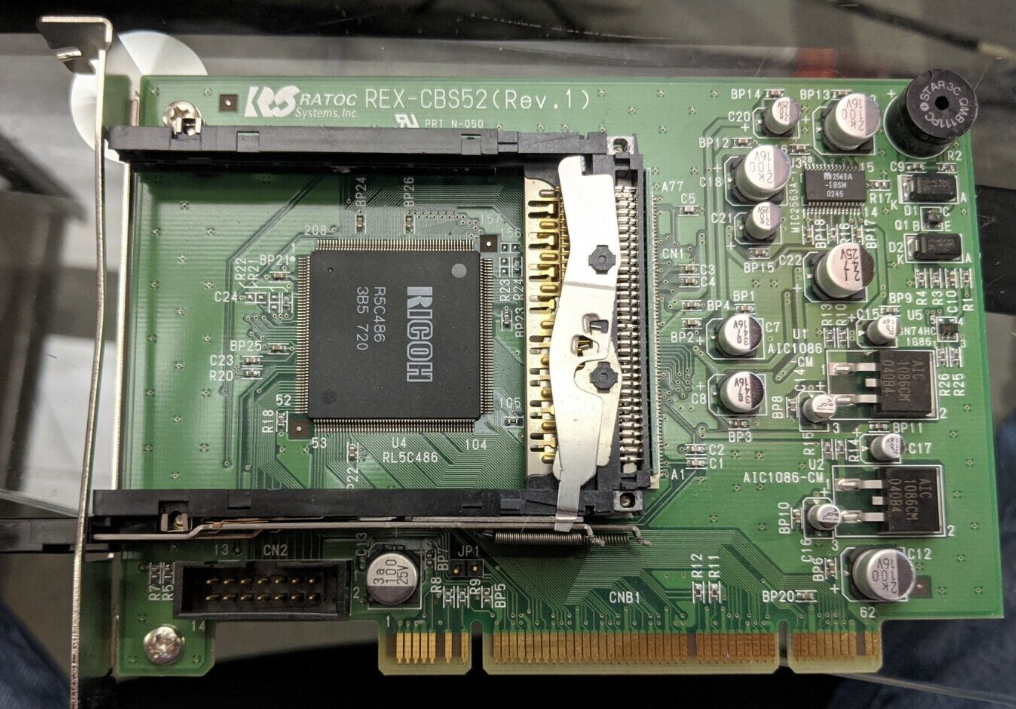

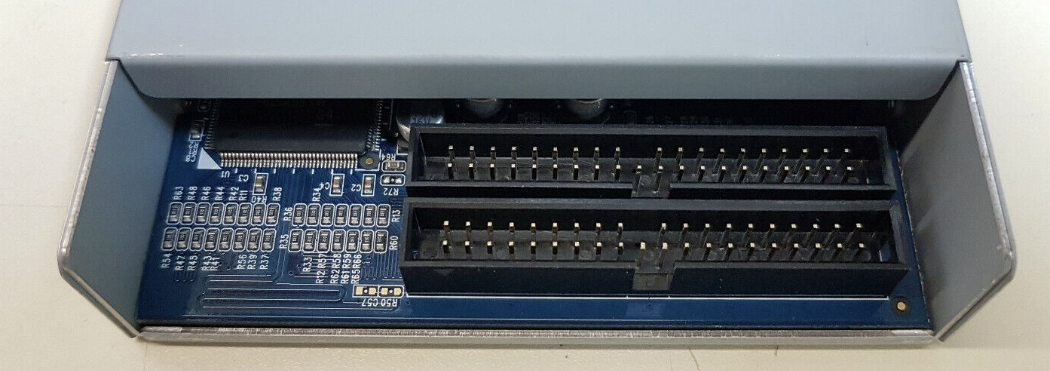

RATOC REX-CBS52
Dual slot cardbus
Ricoh R5C486
Ratoc REX-CBS40
Single Carbus PCI
https://www.ratocsystems.com/products/subpage/cbs40.html
Ratoc REX-CBS52
Dual Cardbus PCI
https://www.ratocsystems.com/products/subpage/cbs52.html
Ratoc REX-505VB
https://scfho.wordpress.com/2009/10/12/pcカードコレクション/

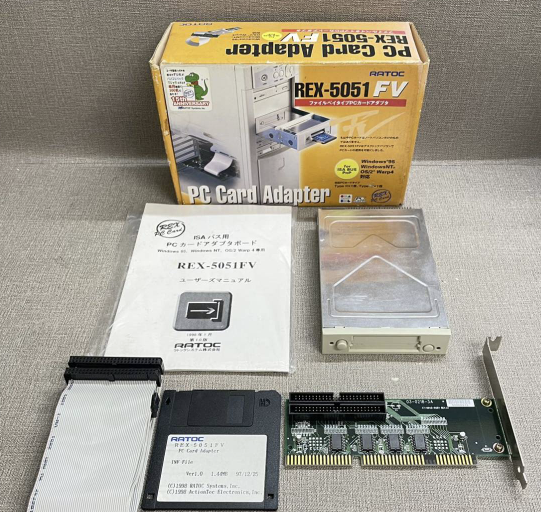

Ratoc REX-5051FC/REX-5051FN
“RATOC REX-5051FV (Internal PC Card Drive, ISA) 9,800 (excl. tax, bulk), T-Zone”
“The REX-5051FN comes with CardWare card software for Windows NT 4.0.”
https://www.ratocsystems.com/products/subpage/5051fv.html
Looks like a Litronic/Greystone clone
SCM

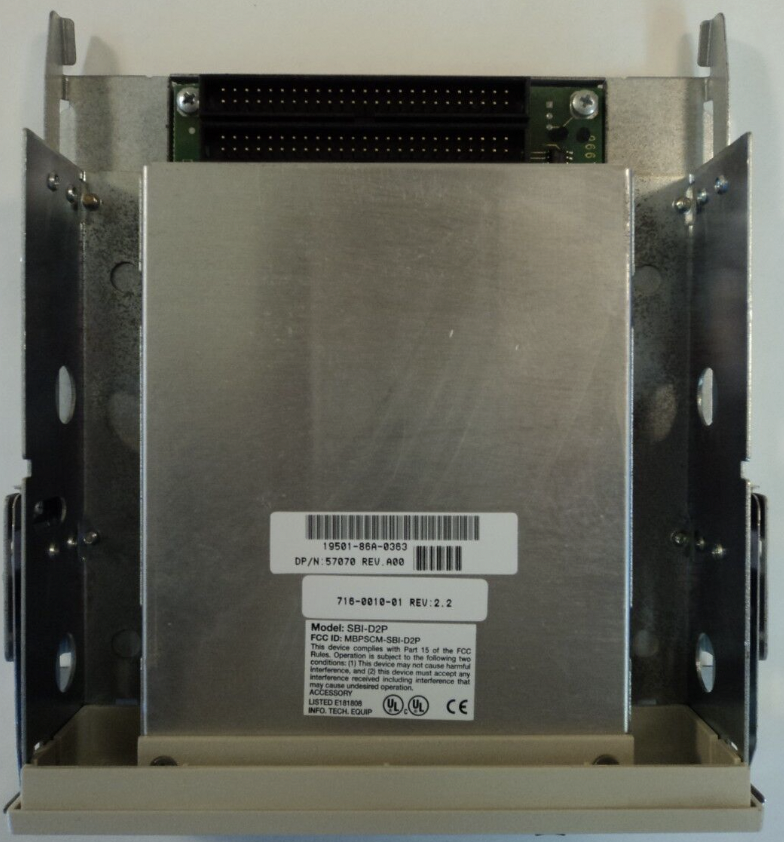

SCM SwapBox SBI-D2P
Same as the one I have

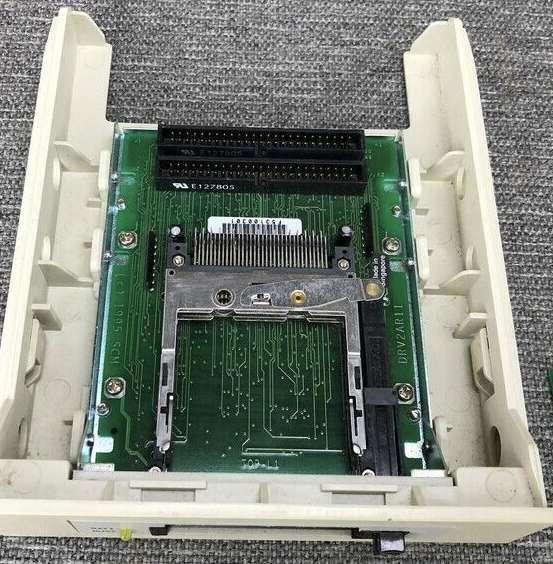

Controller card model: ISAX1R20
Bay model number: DRV2PR22
Controller card is only buffer ICs (74HC244D, 8-bit buffer/line driver with 3-state outputs), real controller must be in drive module

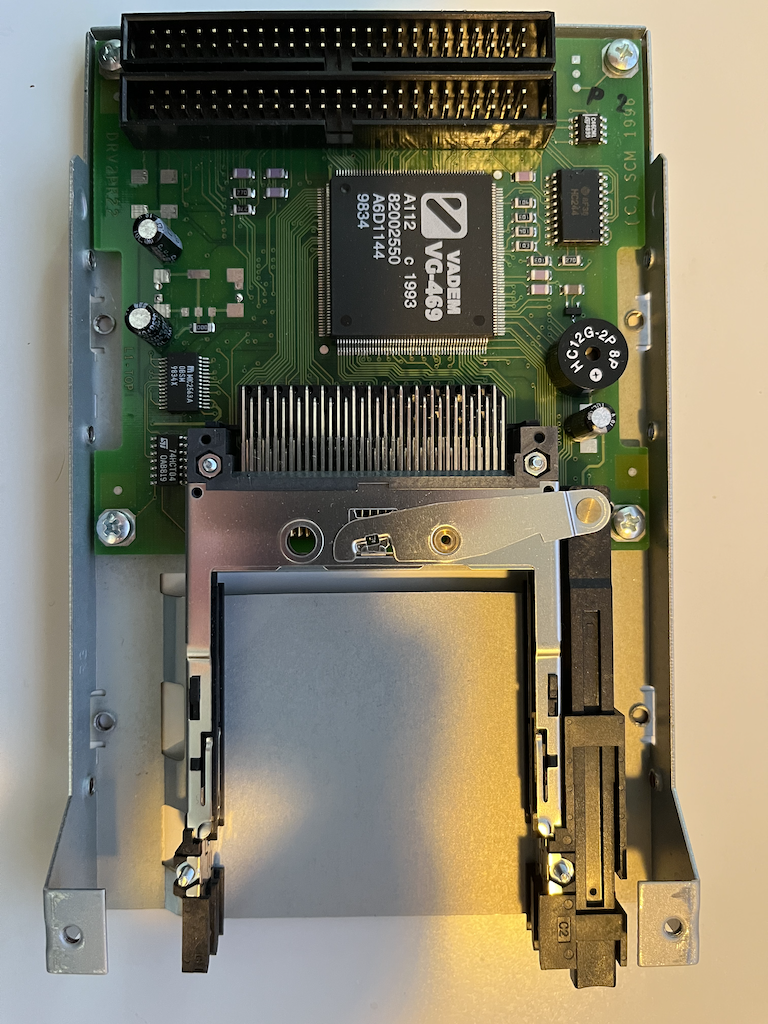

Controller IC (in bay): Vadem VG-469
Two 50-pin connectors
SCM SwapBox
Dual Slot ISA
Controller IC is on bay module: Vadem VG-365
Card model: ISAD2R10
SCM MMCDRIVE SD-r3
Single ISA PCMCIA
Board model: MMCD-DL
Bay marked PCDR REV 3.0
Controller likely Vadem VG-465

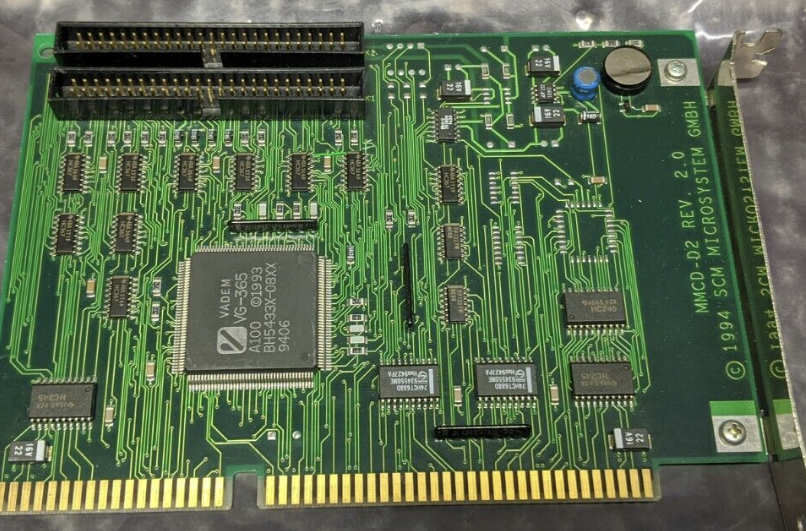

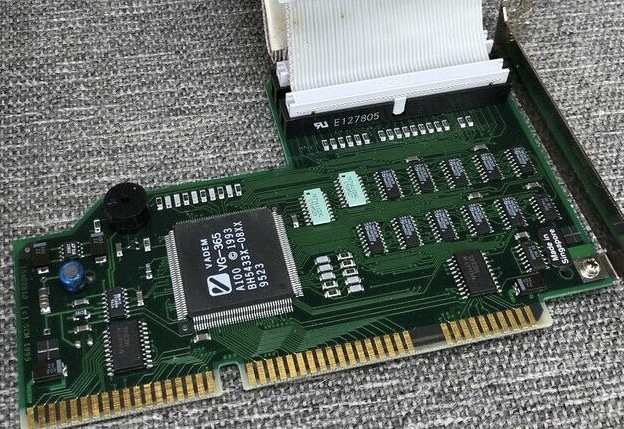

SCM MMCD0D2 Rev 2.0
Probably compatible with SCM MMCDRIVE SD-r3
https://www.ebay.com/itm/293405489656
Controller: Vadem VG-365
SCM ISAC2PR10
Dual slot ISA PCMCIA
Controller: Vadem VG-469

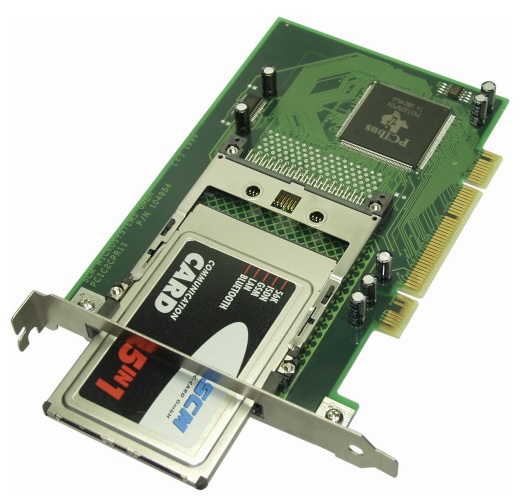

SCM SBP-C1 / PCIC2CPR11
Single Slot PCI
P/N: 104854
Controller: Intel PCI1225PDV
Bundled with Lucent WaveLAN cards or compatibles. Might also be built with dual slots, since PCB has pads for 2x-high PCMCIA connector.
With SCM Microsystems SBP series PCI card readers (which are also being distributed with Lucent WaveLAN IEEE cards), and for the Synchrotech PCM-CR-PC2IF and PCM-CR-PC2IR, it is necessary to specify
irq_mode=0for thei82365module, to force use of PCI interrupts.(from Linux PCMCIA Howto)
Sycard

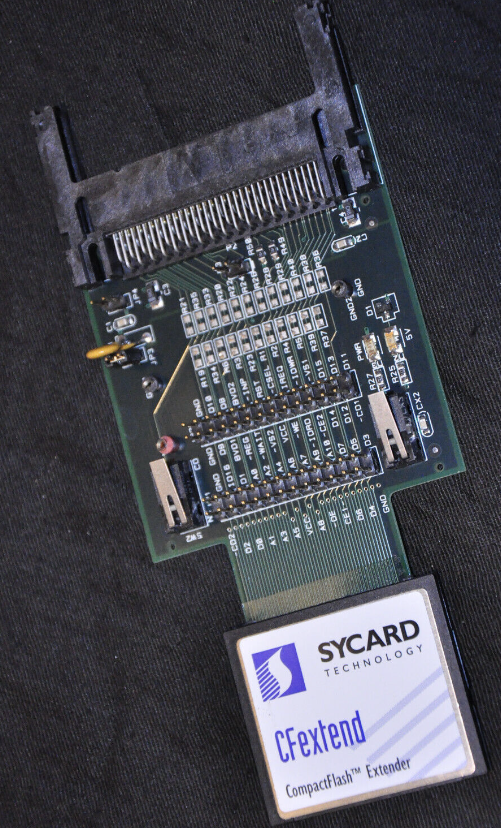

Sycard - CFextend165
https://www.ebay.com/itm/313297883434
Unknown Brand/Manufacturer

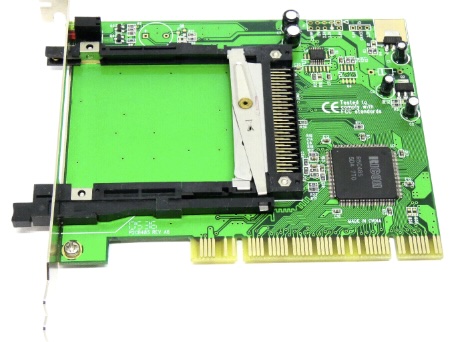

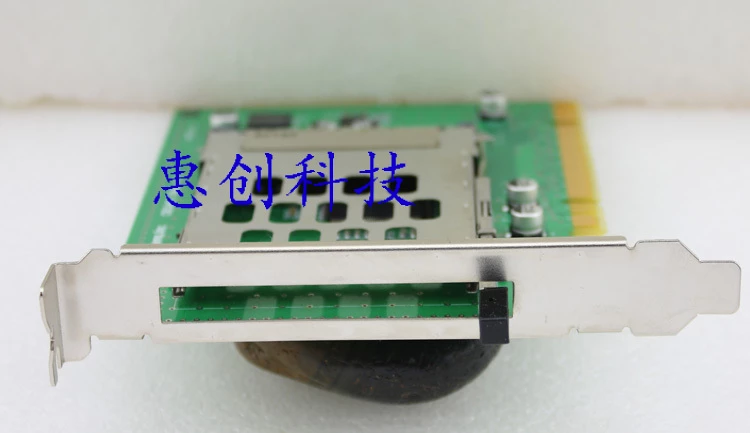

SD-PCIPCMS-A1
PCI to 1x Cardbus, PCMCIA
Controller: RICOH R5C485
https://www.area-powers.jp/product/pci/other/pcipcmsa1b.html

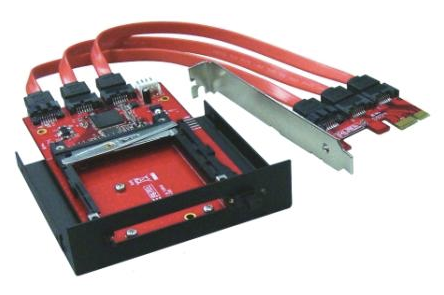

CB242A

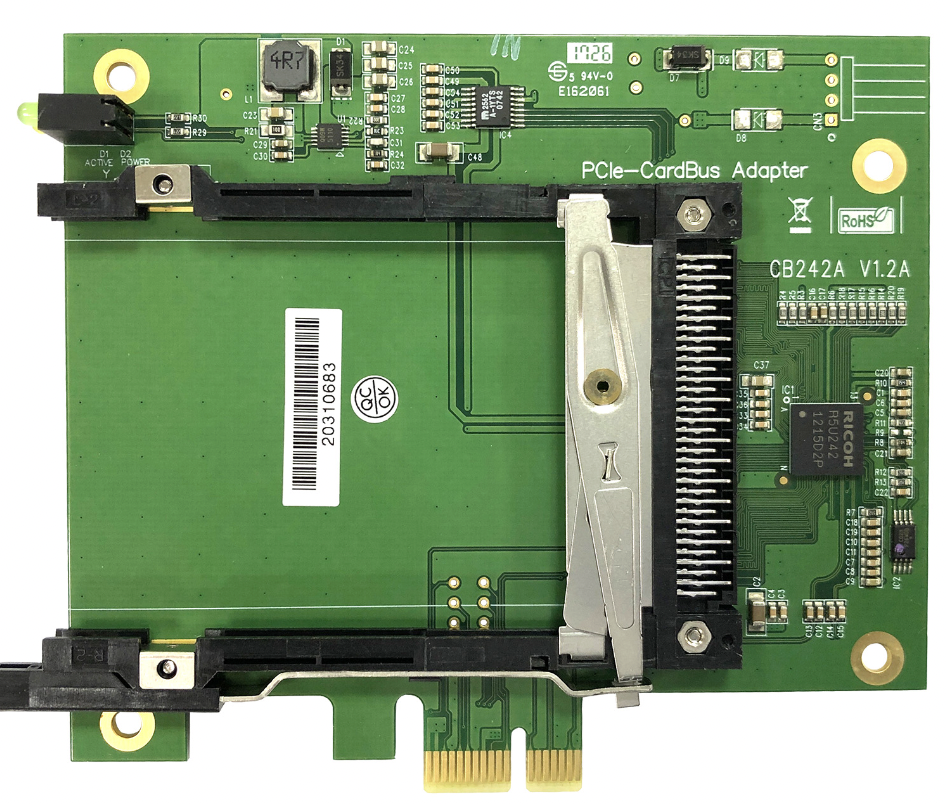

http://www.bplus.com.tw/Adapter/CB242A.html
Cardbus to PCI-Express x1
PCMCIA and CardBus
Controller: Ricoh R5U242a
https://scfho.wordpress.com/2014/03/17/cb242a-v1-1a-pci-express-cardbuspcカードリーダー/
Intel SE82365SL
Dual Slot ISA PCMCIA
Controller: Intel SE82365SL
Card marked: “RAW CARD P/N 1960560”

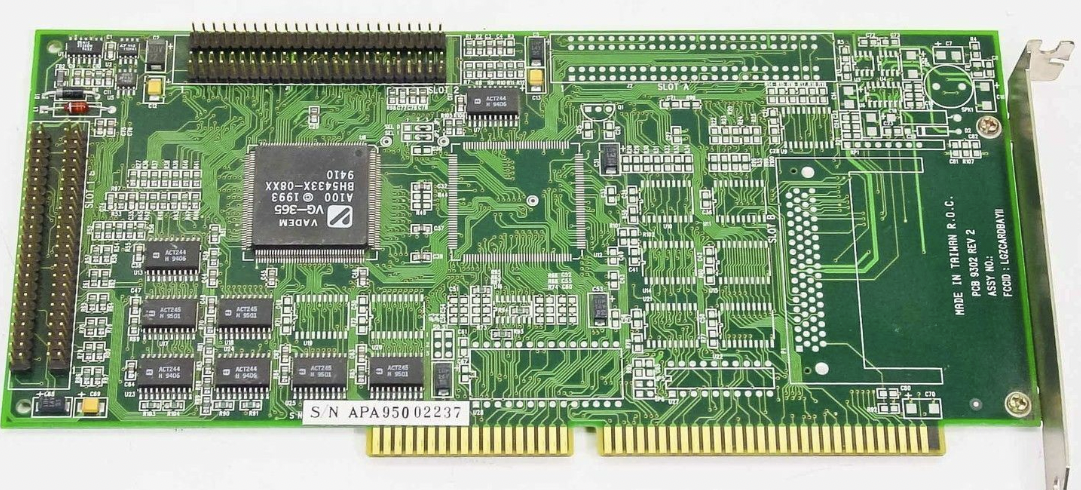

4-slot VG-365 ISA controller
Sold as “Dual scsi card”
FCC ID “LGZCARDBAYII” points to “Cardwell International”
Can house two separate Vadem VG-365 controllers
P111 Card Drive
Single Slot Cardbus
ENE CB-1410QF controller

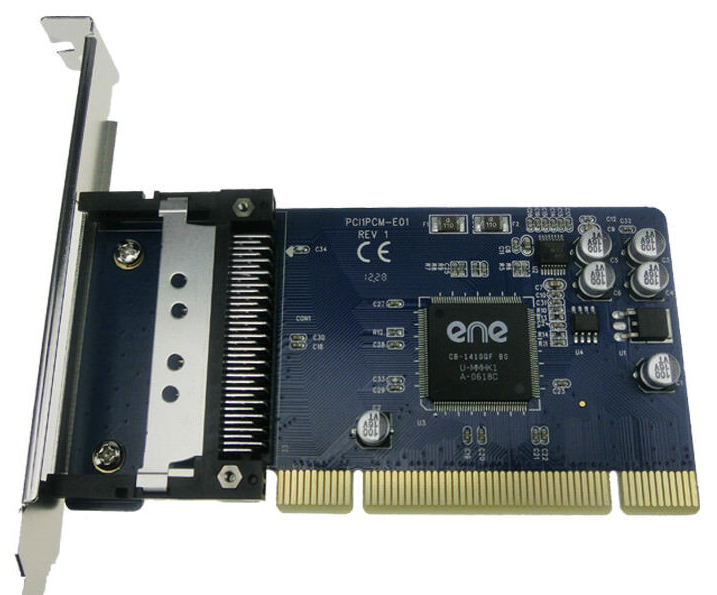

PCI1PCM-E01
Single Slot Cardbus
ENE CB-1410QF controller
Synchrotech
Synchrotech PCM-CR-PC2IF
Synchrotech PCM-CR-PC2IR

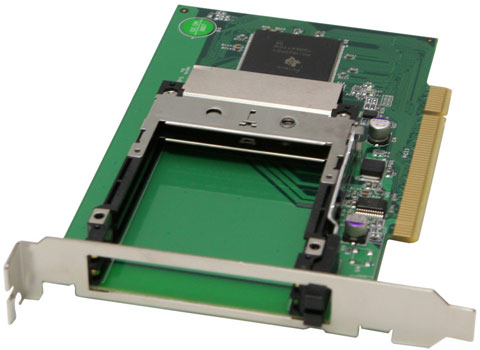

Synchrotech PCM-CR-PC2IC3
Dual Slot Cardbus
Controller: TI PCI1520
PCMCIA 8/16, Cardbus. PCI 2.2.
PCI Bus to PCMCIA PC Card and CardBus Drive 2 Slot Internal Rear
- Slot 1 Up to Type III PC Card
- Slot 2 Up to Type II PC Card
Form Factor: PCI Bus internal rear
Card Interface:32 bit CardBus Cards, all 16 bit PCMCIA, I/O Card and Socket Services
Product page on synchrotech.com for PCM-CR-PC2IC3
Synchrotech PCM-CR-P423B-TI1520
2-Slot Internal PCI Front Loading PC Card Bus Read-Writer
- Slot 1 Up to Type III PC Card
- Slot 2 Up to Type II PC Card
Form Factor: PCI Bus internal 3.5” drive bay
Card Interface: 32 bit CardBus Cards, all 16 bit PCMCIA, I/O Card and Socket Services
Product page on synchrotech.com for PCM-CR-P423B-TI1520
Synchrotech PCM-CR-PC2IF32-B
Controller: TI PCI1520
PCI Bus to PCMCIA PC Card and CardBus 2 Slot Internal Front
- Slot 1 Up to Type III PC Card
- Slot 2 Up to Type II PC Card
Form Factor: PCI Bus internal 3.5” drive bay
Card Interface: 32 bit CardBus Cards, all 16 bit PCMCIA, I/O Card and Socket Services
Product page on synchrotech.com for PCM-CR-PC2IF32-B
Synchrotech PCM-CR-PC2IF2-W / PCM-CR-PC2IF2-B
PCI Bus to PC Card Read-Writers 2 Slot Internal
- Slot 1 Up to Type III PC Card
- Slot 2 Up to Type II PC Card
Form Factor: PCI Bus internal 3.5” drive bay
Card Interface: All 16 bit PCMCIA, I/O Card and Socket Services
Product page on synchrotech.com for PCM-CR-PC2IF2-W/B
Synchrotech PCI-MD1/PCM-CR-PC1ICL
PCI Bus to PC CardBus, 1 Slot Internal Rear Low Profile
- Slot 1 Up to Type II PC Card
Form Factor: PCI Bus Internal Low Profile rear
Card Interface: 32 bit CardBus Cards, all 16 bit PCMCIA, I/O Card and Socket Services
Product page on synchrotech.com for PCM-CR-PC1ICL
Synchrotech PCI-MD1/PCM-CR-PC1ICFL
PCI Bus to Single CompactFlash Type I-II Internal Rear Low
- Slot 1 Up to Type II CompactFlash
Form Factor: PCI Bus Internal Low Profile rear
Card Interface: All 16 bit CompactFlash, I/O Card and Socket Services
Product page on synchrotech.com for PCM-CR-PC1ICFL
Cards that do NOT function as general-purpose slots
Linksys WDT11 / PLX PCI9052
The PLX Technologies PCI9052 (also sold as the Linksys WDT11) is not a general purpose PCMCIA card reader at all: it is a PCI interface card for use with certain wireless adapters, that makes them look like ordinary PCI devices. They cannot be used as generic card slots.
